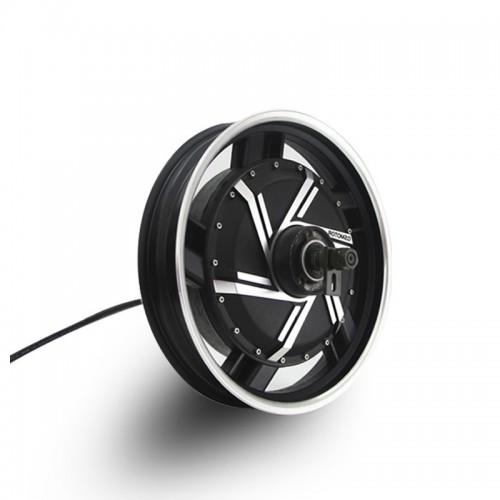

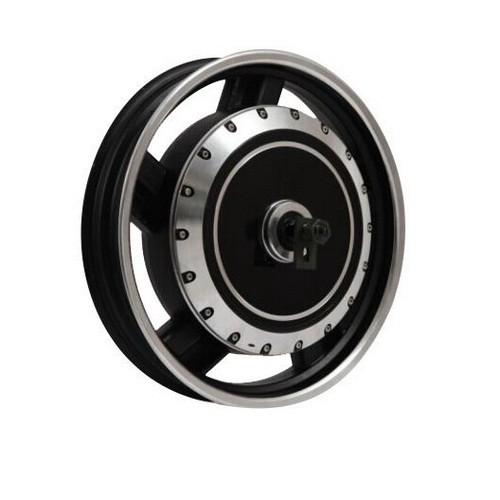

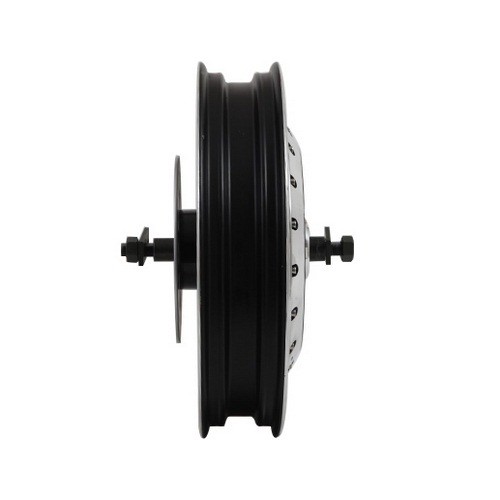

1. Motor type: BLDC hub motor with permanent magnets
2. Motor design: Dual axle out with 1 x 6" aluminum rim
3. rim size: 3.0x16
4. Tires: 120/60-1 6
5. magnet height: 40mm
6. number of pole pairs: 16 pairs
7. Rated power: 4000W
8. Maximum power: 4950W (peak 8000W)
9. Rated voltage: 72V (48-96V optional)
11. Maximum torque: 266 N.M. 12.
12. Maximum Efficiency: 90% 13.
13. Continuous current: 67A
14. Maximum Current: 80A Peak 140A
15. Brake Type: Disc Brake
16. Mist width after installation: 200mm
17. Winding bracket material: aluminum
18. Phase wire cross section: 16 mm2
19. Hall sensor phase angle: 120 degrees 20.
20. Temperature sensor: KTY83-122 21.
21. Maximum operating temperature: 70-120 degrees, peak 150 degrees 22.
22. Waterproof rating: IP66
23. NW/G. Weight ： 21kgs / 22kgs
24. Package size : 44*43*34CM
