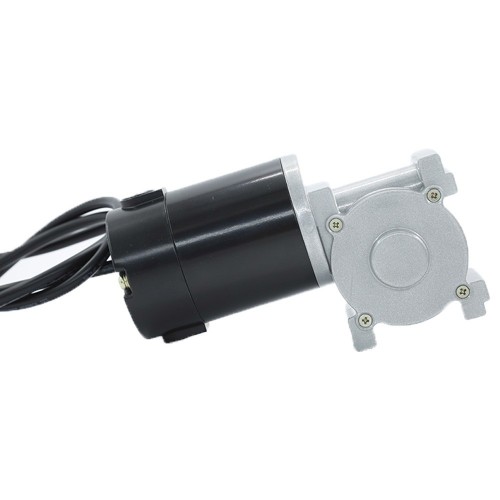

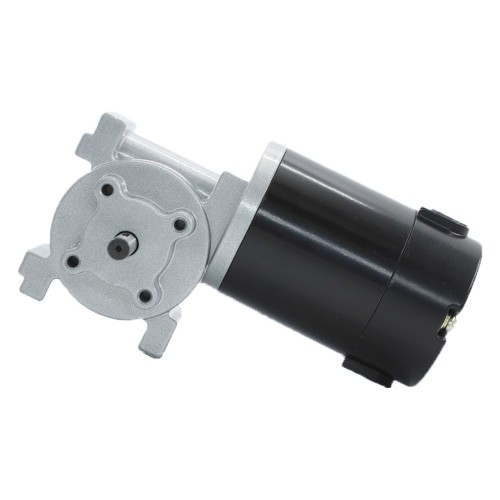

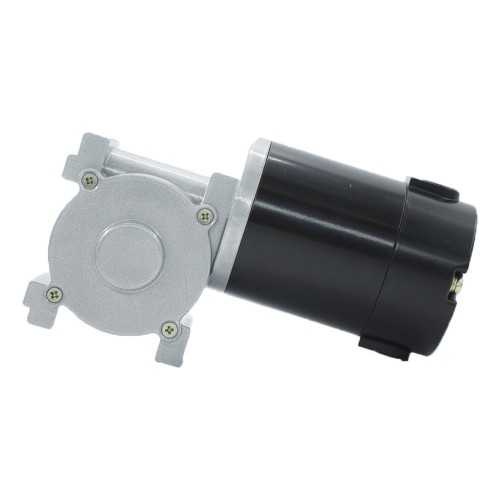

DC Permanent Magnet Geared Motor General Purpose Motor
$48.00
1Piece Minimum order
PRODUCT PARAMETERS
Voltage |
24V |
|---|---|
Power |
60W |
Speed |
3400r |
Motor Technical Data
| Type | Voltage(V) | Torque(N.cm) | Current(A) | Speed(r/min) | Power（W） | Length(mm) |
| 73ZY- |
24V |
0.17 | 5 | 3400 | 60 |
106 |
Gearbox Technical Data
Ratio
Reducer size(L*W*H)(mm)
Unloaded speed(r/min)
Load speed(r/min)
Rated torque(N.m)
Max Load(N.m))
17:1
86*91*76
230
180
1.6
5
57:1
86*91*76
70
60
4.8
30
