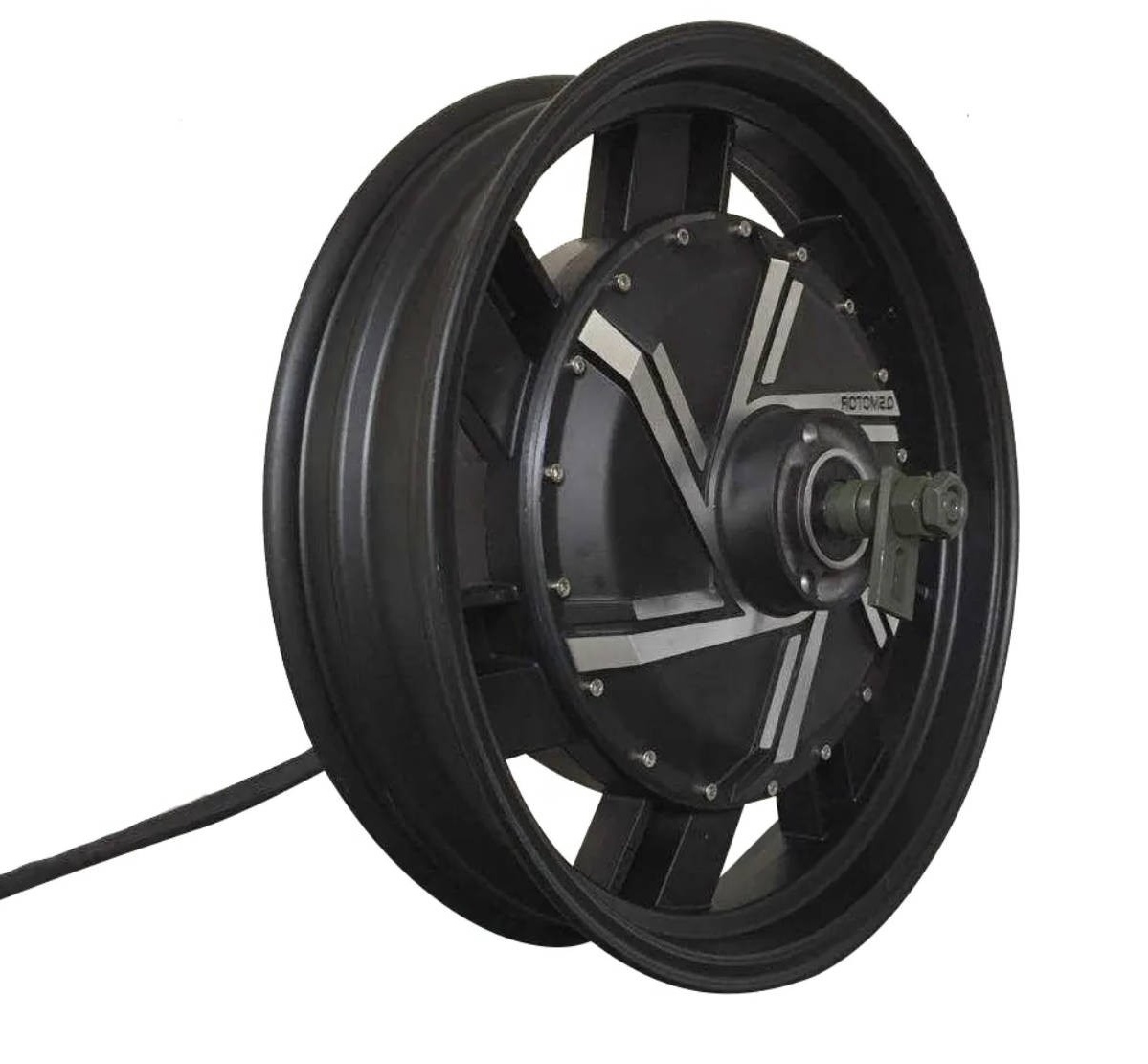

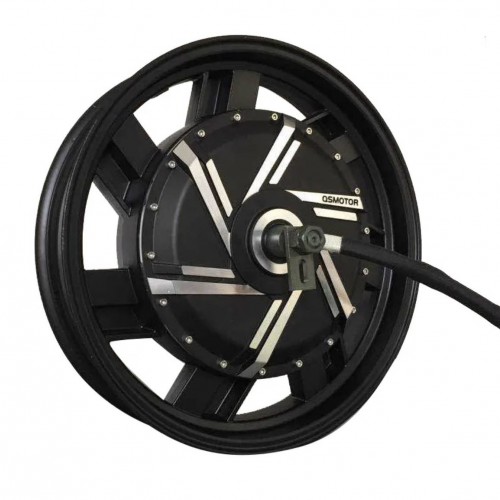

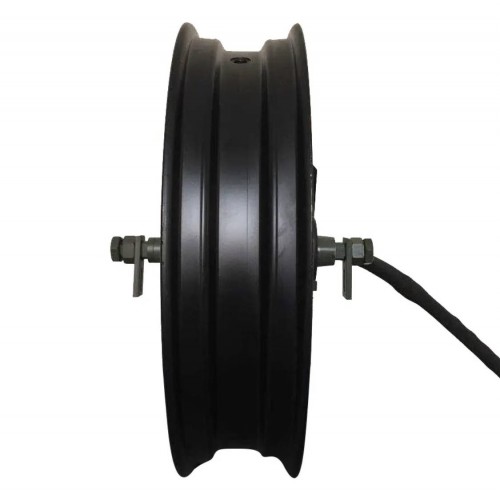

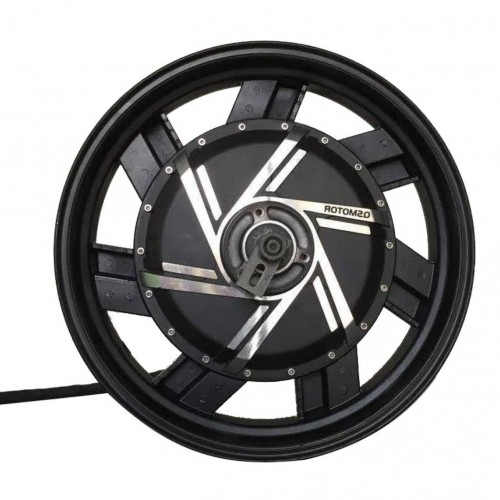

1. Motor type: BLDC hub motor with permanent magnets
2. Motor design: dual axle out with 17" aluminum rims
3. rim size: 3.5x17
4. Matching tires: 130/70-17
5. magnet height: 50mm
6. Number of pole pairs: 28 paris
7. Rated power: 7000W
8. Maximum power: 11000W (peak 14000W)
9. rated voltage: 72V (72-144V optional)
10. speed: 115km/h (30-115km/h customizable)
11. Maximum no-load speed: 1150RPM
12. Maximum torque: 200N.M
13. Maximum Efficiency: 89%.
14. Continuous current: 114A
15. Maximum current: 180A, peak 240A 16.
16. Brake Type: Disc Brake
17. Mounting rear fork width: 200mm
18. Winding bracket material: aluminum
19. Phase wire cross section: 16 mm2 20.
20. Hall sensor phase angle: 120 degrees 21.
21. Temperature sensor: KTY83-122 22.
22 Maximum operating temperature: 70-120 degrees, peak 150 degrees 23 Waterproof rating: IP66
23. Waterproof rating: IP66
24. Northwest / G... Width : 22kgs / 23kgs
25. Package size: 58*58*40CM
