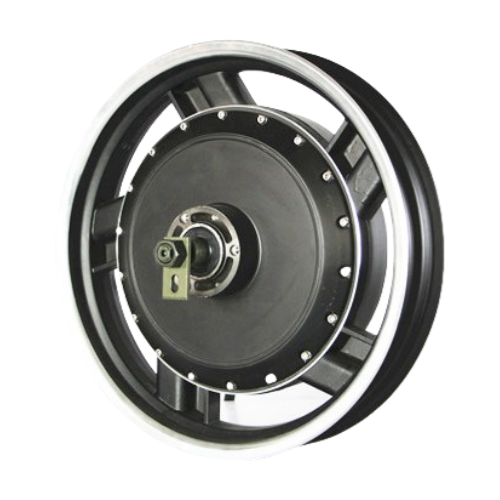

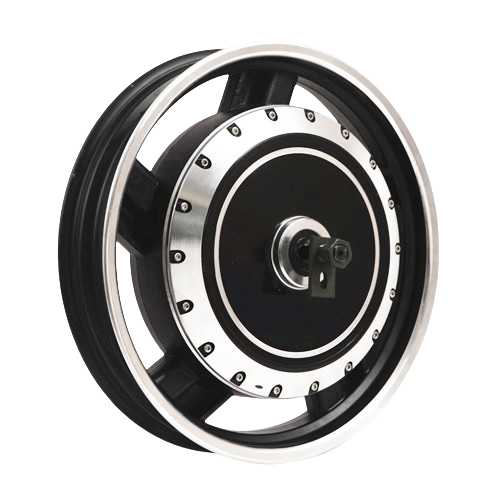

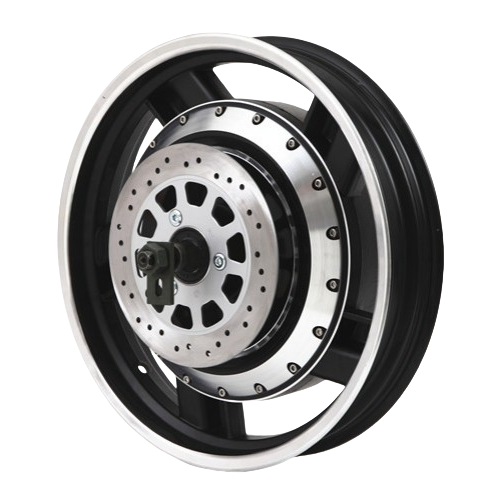

QS273 17-inch Electric Scooter Hub Motor (50H) 8000W V3 Type
$515.00
1Piece Minimum order
PRODUCT PARAMETERS
1. motor type: BLDC hub motor with permanent magnet
2. Motor design: dual axle out with 17" aluminum rims
3. rim size: 3.5x17
4. Tires: 130/70-17,150/70-17
5. magnet height: 50mm
6. Number of pole pairs: 16 pairs
7. Rated power: 8000W
8. peak power: 21000W in a few seconds
9. Rated voltage: 48V / 60V / 72V
11. Maximum torque: 350N.M
12. Maximum efficiency: 90%
13. Continuous current: 130A
14. Maximum current: 190A , peak 260A
15. Brake Type: Disc Brake
16. Width of mounted rear fork: 200mm
17. Phase line cross section: 16 mm2 18.
18. Hall sensor phase angle: 120 degrees 19.
19. Temperature sensor: KTY83-122 20.
20. Maximum operating temperature: 70-120 degrees, peak 150 degrees 21.
21. Waterproof rating: IP66
22. NW/G. Weight : 24 kg / 26 kg
23. Package size : 50*50*40CM
2. Motor design: dual axle out with 17" aluminum rims
3. rim size: 3.5x17
4. Tires: 130/70-17,150/70-17
5. magnet height: 50mm
6. Number of pole pairs: 16 pairs
7. Rated power: 8000W
8. peak power: 21000W in a few seconds
9. Rated voltage: 48V / 60V / 72V
11. Maximum torque: 350N.M
12. Maximum efficiency: 90%
13. Continuous current: 130A
14. Maximum current: 190A , peak 260A
15. Brake Type: Disc Brake
16. Width of mounted rear fork: 200mm
17. Phase line cross section: 16 mm2 18.
18. Hall sensor phase angle: 120 degrees 19.
19. Temperature sensor: KTY83-122 20.
20. Maximum operating temperature: 70-120 degrees, peak 150 degrees 21.
21. Waterproof rating: IP66
22. NW/G. Weight : 24 kg / 26 kg
23. Package size : 50*50*40CM
