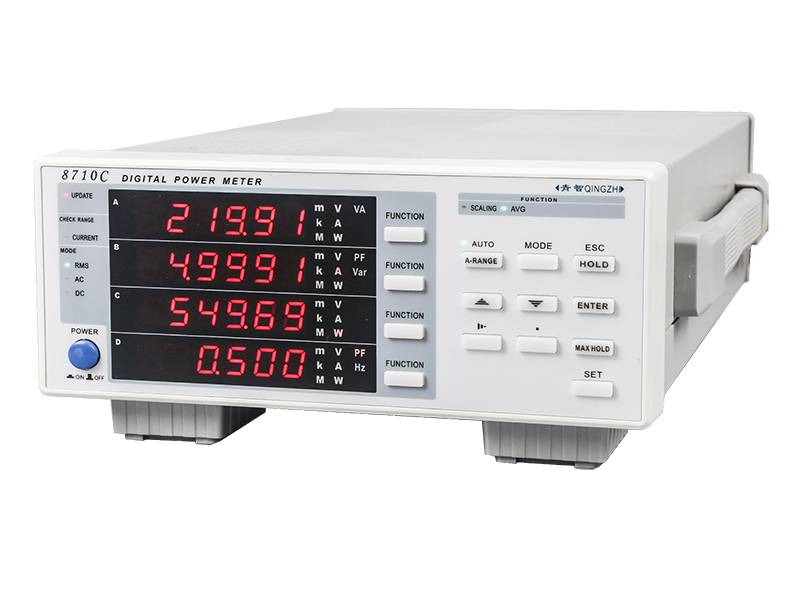

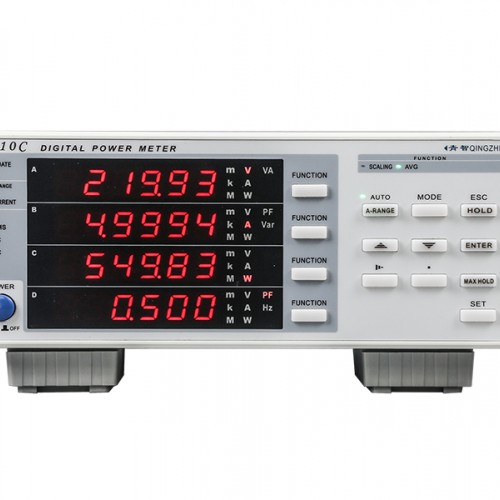

The 871XC series digital electrical parameter tester adopts an advanced 32-bit high-speed processor and dual 24-bit AD converters, featuring high precision, wide dynamic range, and a compact, lightweight design. As a next-generation digital electrical parameter measurement instrument, it can measure: RMS voltage & current, Active power, Apparent power, Reactive power, Energy accumulation, Energy timing, Frequency, Power factor.
Measurement of Standby Power Consumption and Operating Power for Household Appliances
Compliant with international standards (IEC 62301, ENERGY STAR, SPECpower), this instrument is suitable for testing household appliances, LED lamps, LED drivers, phone chargers, and other related products.
The 8718C Power Analyzer enables ultra-low current measurement down to 50μA and power as low as 1mW, making it ideal for analyzing the energy consumption of household appliances in standby mode.
Testing for High-Current Appliances (e.g., Induction Cookers, Electric Water Heaters)
Directly measures high currents up to 40A without requiring an external current sensor.
Features automatic current range switching in integration mode, ensuring higher measurement accuracy while reducing equipment costs.
Wide current measurement range: 0.05mA to 40A.
