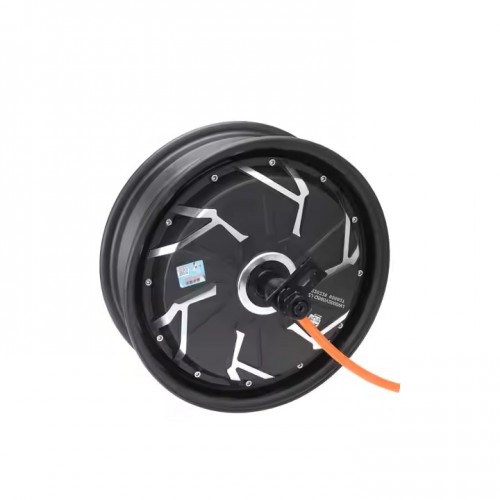

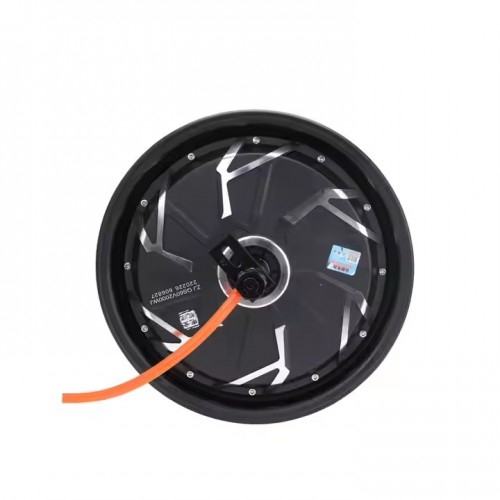

Motor Type: BLDC Outrunner Hub Motor with Hall Sensor

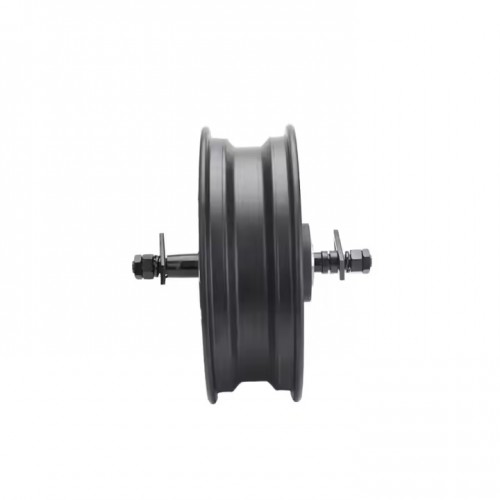

Motor Design: Dual Axle with 12 inch Moped Wheels (Integrated)
Rim Size: 12x.15 inch (Narrow Tires by default), Matching Tires: 2.5-12, 3.5-12, etc.
12x3.5 inch (Wide Tires)
Magnet Height: 35mm, 28 Pole Pair
Stator: Aluminum Core
Rated Power: 2000W
Speed (customizable):
48v 30km/h ~ 65km/h 300-900 rpm
60v 30km/h ~ 70km/h 300-980 rpm
72v 30km/h ~ 70km/h 300-980 rpm
Maximum torque approx. 141.5N.m
KV: 10.5/12.16 (optional) )
Thermal probe: KTY83-122 (optional by default)
Max. efficiency approx. 88%
Brake type: Disc brake (default), PCD3 * 80mm-M8, CB 58mm
Dropout: 200mm
Single hall with waterproof connection (can be customized mad double hall)
6mm ² phase line
Waterproofing rating: IP54
Colors: black (default), yellow or white/illuminated
