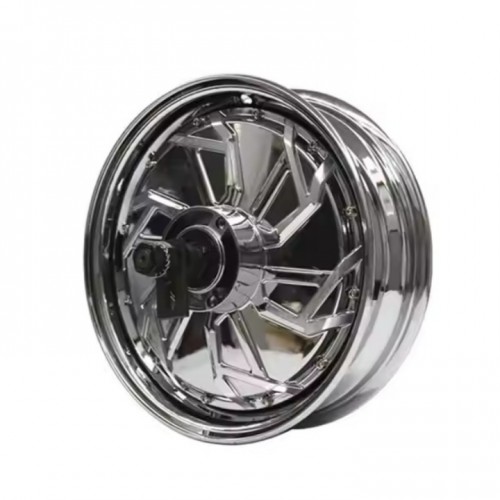

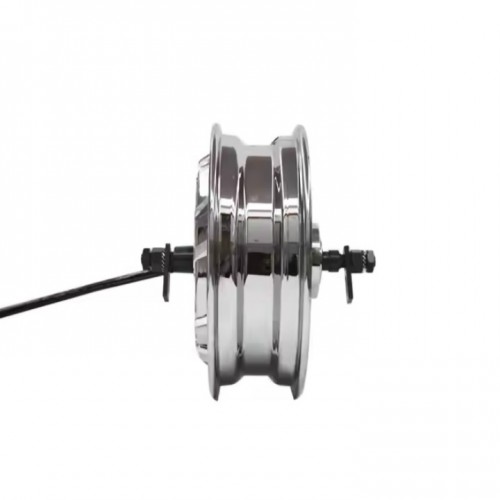

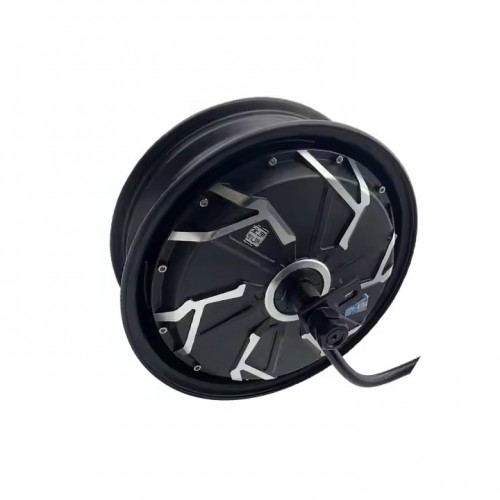

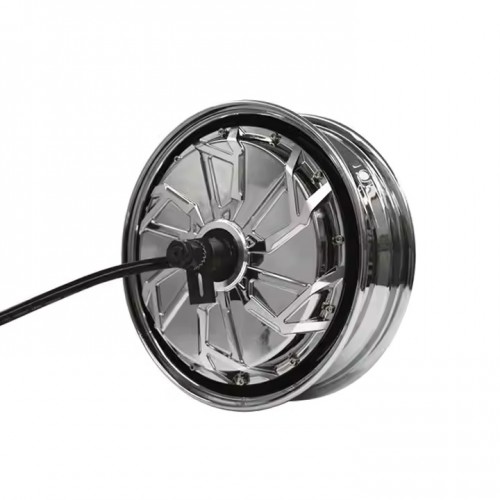

Motor Type: BLDC Outrunner Hub Motor with Hall Sensor
Motor Design: Dual Axle with 12 inch Moped Wheels (Integrated)
Rim Size: 12x.15 inch (Narrow Tires by default), Matching Tires: 2.5-12, 3.5-12, etc.
12x3.5 inch (Wide Tires)
Magnet Height: 30mm, 28 Pole Pair
Stator: Aluminum Core
Rated Power: 1500W
Speed (customizable):
48v 30km/h ~ 60km/h 300-800rpm
60v 30km/h ~ 60km/h 300-1000rpm
72v 30km/h ~ 60km/h 300-1250rpm
Single hall with waterproof connection (can be customized with mad double hall)
Colors: black (default), yellow or white/illuminated ), yellow or white/illuminated
Waterproof rating: IP54
6mm ² phase line
One hall
Dropout: 200mm
Brake type: disc brake (default), PCD3 * 80mm-M8, CB 58mm
Max. efficiency approx. 88%
Thermal probe: KTY83-122 (optional by default)
KV: 8.52 (optional)
Max. torque approx. 132,5N.m
