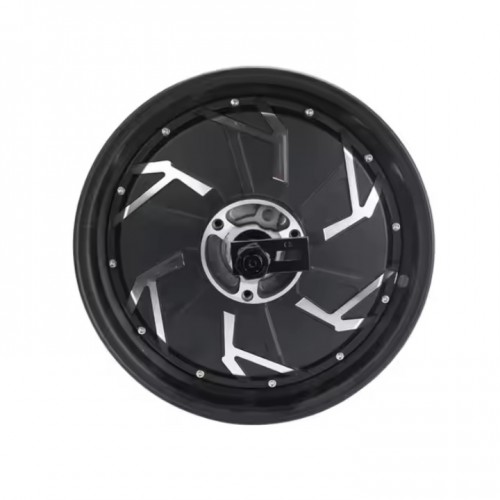

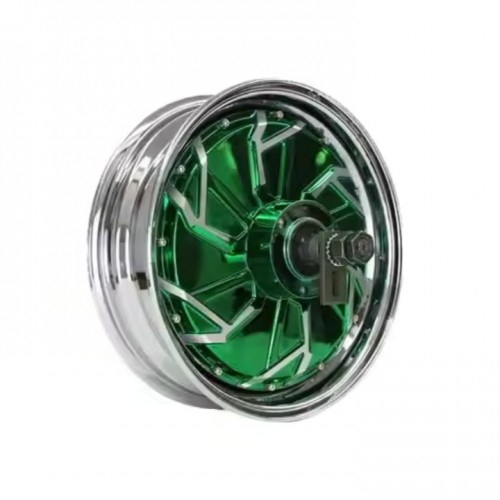

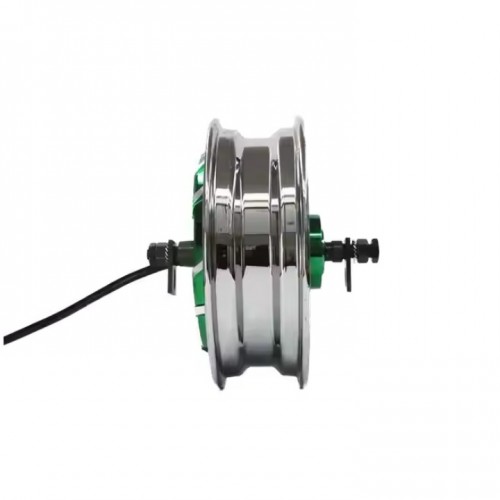

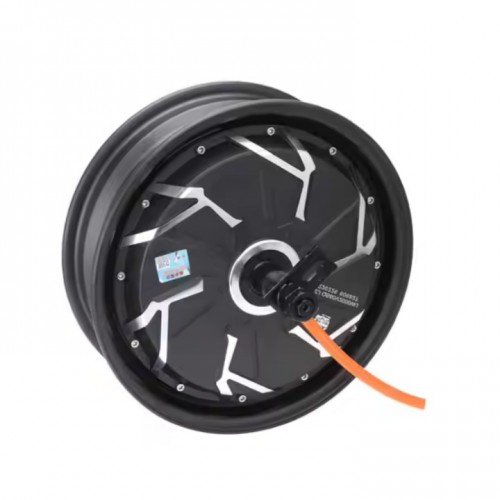

Motor Type: BLDC Outrunner Hub Motor with Hall Sensor
Motor Design: Dual Axle with 12 inch Moped Rims (Integrated) Rim Size: 12x2. 15 inches (Narrow Tire by Default), Matching Tires: 2.5-12, 3.5-12, etc. 12x3. 5 inches (Wide Tire)
P.S: For 12 * 5.0 inches width tires, it will cost you extra 15.0 USD per piece.
Magnet Height: 50mm, 16 pole pairs
Stator: Aluminum core
Rated power: 6000W
Speed: 30KPH-110KPH, this is customized, we will design it for 72V85KPH.
Operating Voltage Range: 48V-96V, 72V by default.
Maximum torque approx. 280.0 N.m
KV: Depends on customer's maximum speed request (optional)
Thermal probe: KTY83- 122 (optional by default)
Max. efficiency approx. 88%
Brake type: Disc brake (default), PCD3 * 80mm-M8, CB 58mm
Retreat: 200mm (can be customized up to 230mm)
Dual hall with waterproof connection (one spare in case of damages)
16mm ² phase cable
Waterproof rating: IP54
Colors: black (default), yellow or white/illuminated
