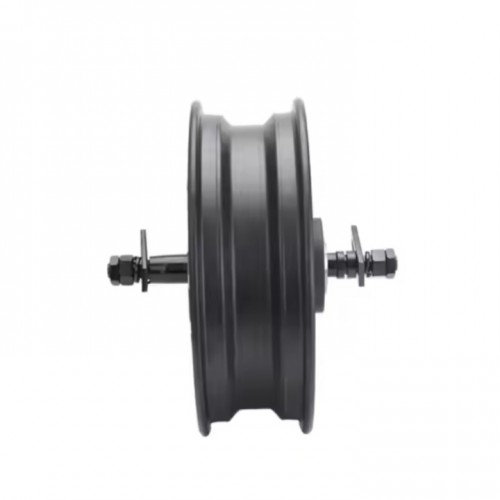

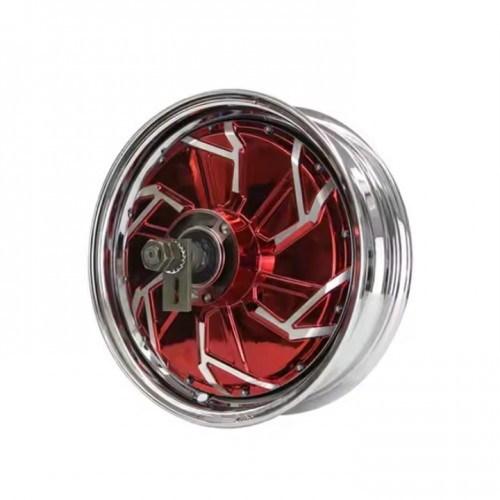

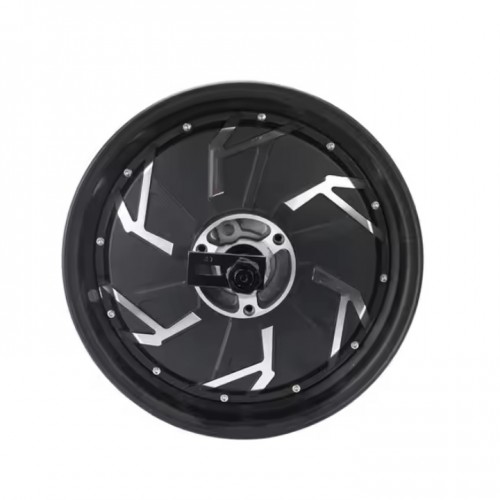

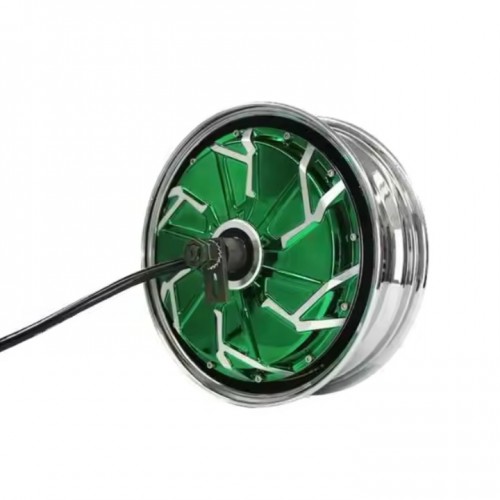

Motor Type. BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
Motor Design. Double axle with 12inch moped rim (integrated)
Rim size:12x2.15inch(Narrow Tire as default), Matched tire:2.5-12,3.5-12 etc
12x3.5inch(Wide Tire)
Magnet Height: 30mm, 28 pole pairs
Stator. Aluminum Core
Rated Power: 1500W
Speed(customizable).
48v 30km/h~60km/h 300-800RPM
60v 30km/h~60km/h 300-1000RPM
72v 30km/h~60km/h 300-1250RPM
Color: Black (as default), Yellow or White/Luminous
Waterproof Grade: IP54
8mm² Phase Wire
One hall
Drop-outs: 200mm
Brake type. Disc brake (as default), PCD3*80mm-M8, CB 58mm
Max Efficiency approx 88%
Dual Halls with waterproof connectos (one for spare, in case of damage)
Thermic Probe. KTY83-122 (as default, optional)
KV: 8.52 (optional)
Max Torque approx 141.5N.m
