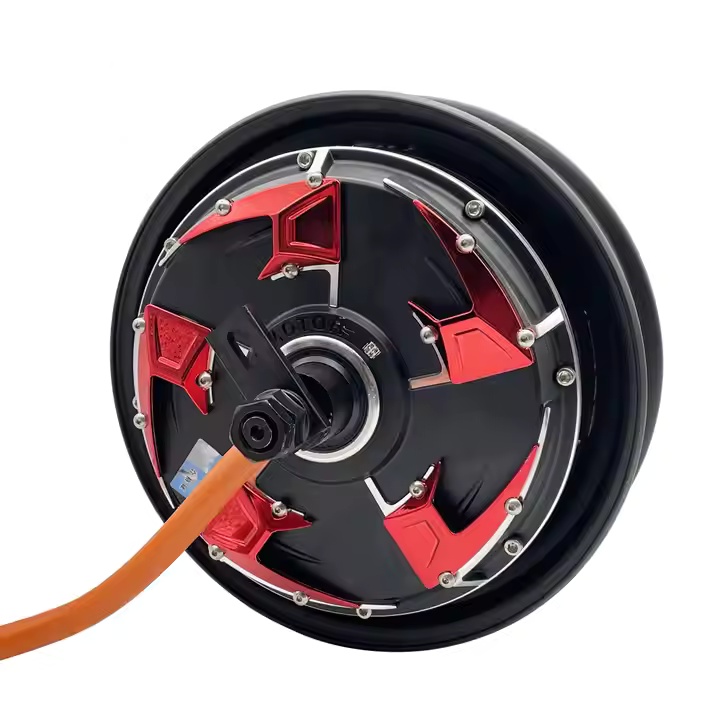

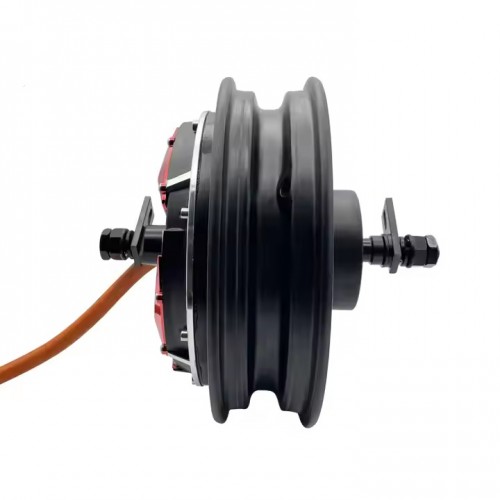

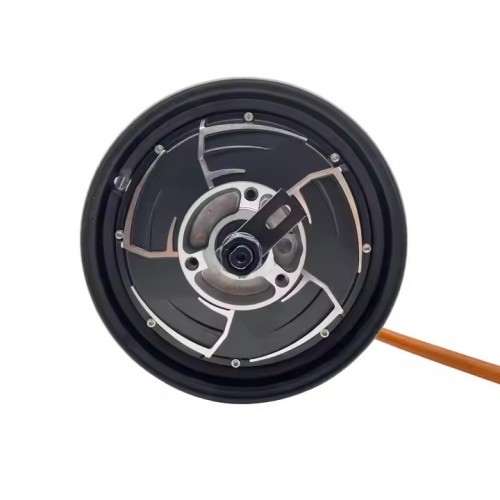

-Motor Type: BLDC Outrunner Hub Motor with Hall Sensor
-Brand: QS Motor, QSMOTOR
-Motor Design: Dual Axis with 10-inch moped rims (integrated)
- Rim size: 10x2.15 inches (default narrow tires), matching tires: 3.0-10,3.5-10, etc.
-10x3.0 inches (wide tires) and 10x5.5 inches (customized)
-Magnet height: 55mm, 16 pole pairs
-Stator: Aluminum core
-Power rating: 4000W -Speed (customizable):
48v 21km/h~65km/h
60v 26km/h~80km/h
72v 32km/h~80km/h
-Maximum torque about 201N.m
-Thermal probe: KTY83-122 (default, optional)
-Maximum efficiency approx. 88
-Brake type: Disc brake (default), PCD3*80mm-M8, CB 58mm
-Shedding number: 200mm
- Double Hall with waterproof connector (one spare in case of damage)
-10mm² phase cable
- Waterproof rating: IP54
- Color: black (default), yellow or white/luminous
