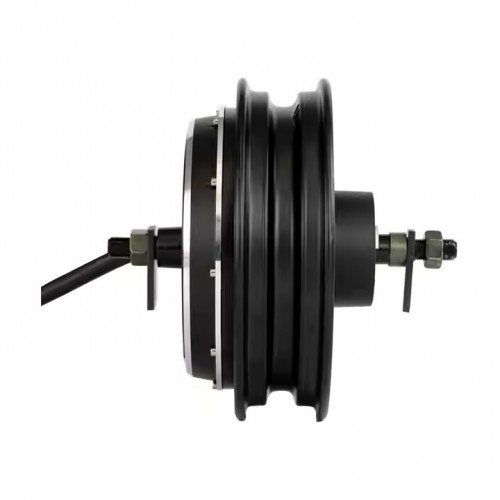

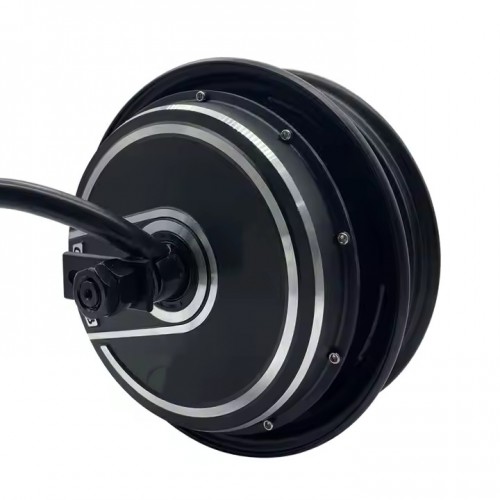

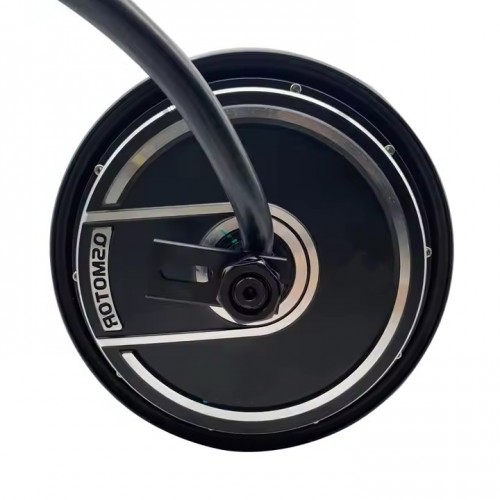

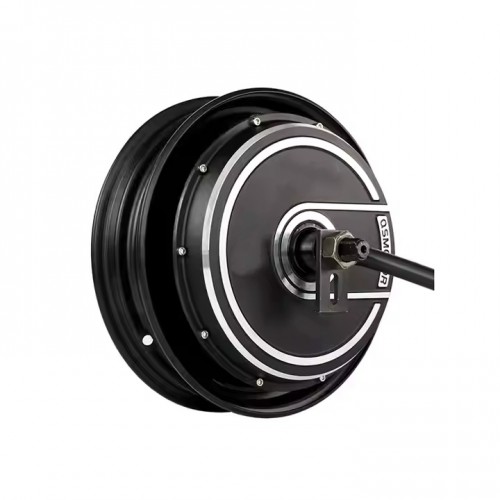

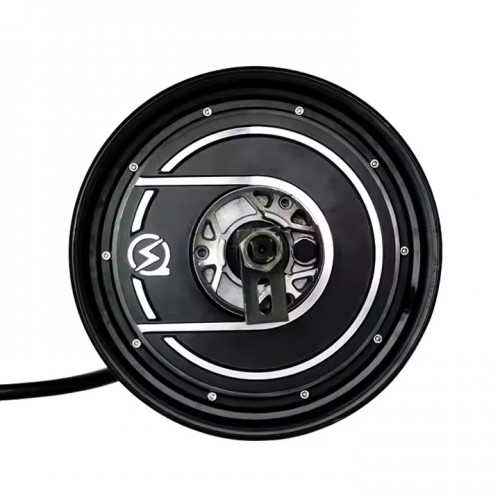

3500w Hub Motor Scooter Gear 48-120V Brushless DC Motor BLDC Motor
$235.00
1Piece Minimum order
PRODUCT PARAMETERS
- Motor Type: Brushless DC motor (BLDC motor)
- Axle Configuration: 2
- Rim section: 10"
- Braking System: Disc Brake
- Rated speed: 130 km/h
- Voltage: 48-120 volts
- Magnet height: 50 mm
- Speed: 1200
- Output rating: 3.5 kW
- Number of pole pairs: 16
- Maximum Efficiency: ≥ 90%.
- Hall elements: 2
- Hall sensor phases: 120 °
- Number of motor phases: 3
- Number of motor phases: 3 Phase lines in cross section: 16 square
- Waterproof rating: IP67 Protection rating
- Axle Configuration: 2
- Rim section: 10"
- Braking System: Disc Brake
- Rated speed: 130 km/h
- Voltage: 48-120 volts
- Magnet height: 50 mm
- Speed: 1200
- Output rating: 3.5 kW
- Number of pole pairs: 16
- Maximum Efficiency: ≥ 90%.
- Hall elements: 2
- Hall sensor phases: 120 °
- Number of motor phases: 3
- Number of motor phases: 3 Phase lines in cross section: 16 square
- Waterproof rating: IP67 Protection rating
