PRODUCT DETAILS

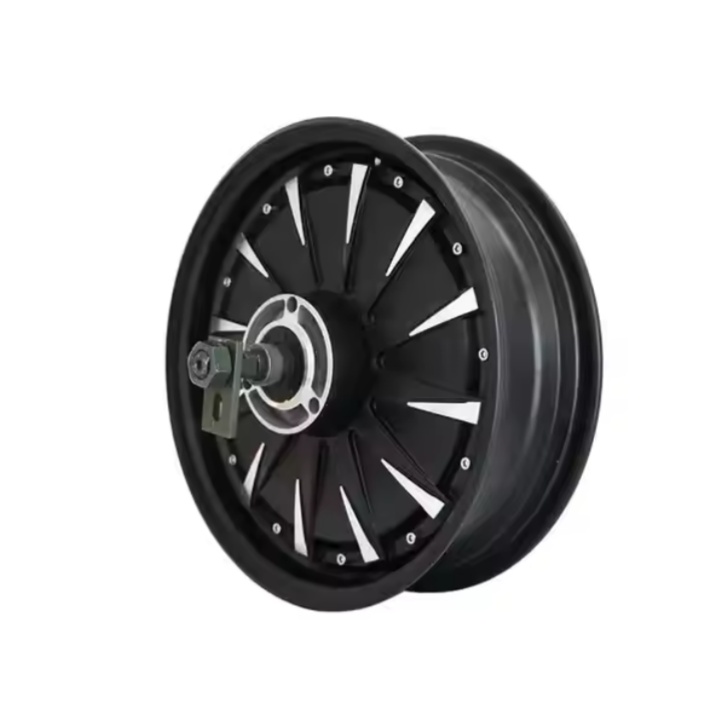

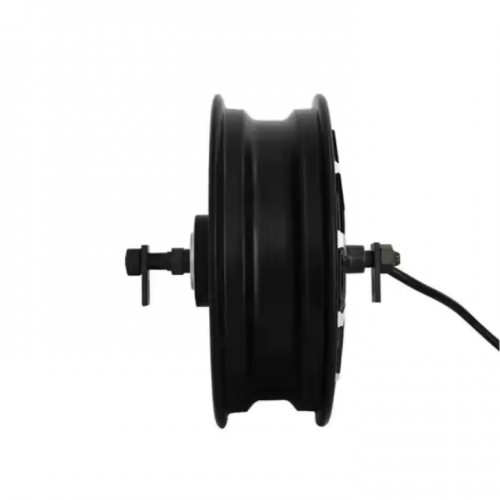

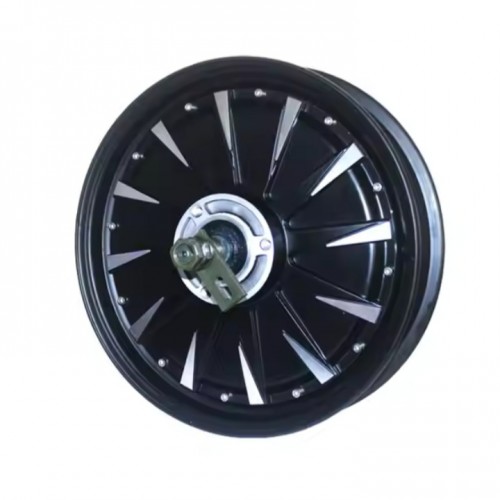

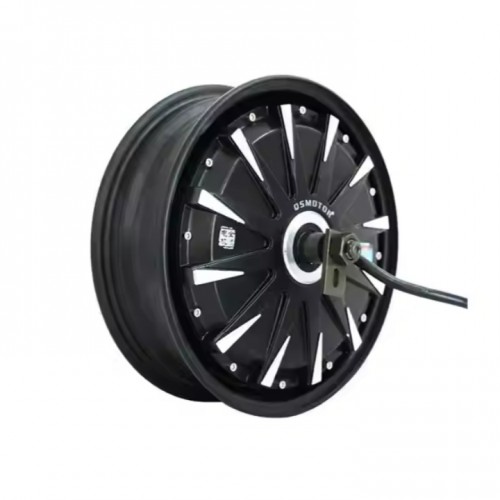

QSMotor 12X2.5 inch 1500W 260 V1 Electric Motorcycle Moped Hub Motor Brushless

$111.00

1Piece Minimum order

  • Business type: e-motorcycle

PRODUCT PARAMETERS

 * Motor Type: BLDC Outrunner Hub Motor with Hall Sensor
 * Motor design: Twin shaft with 12-inch moped rims (integrated)
 * Rim size: 12x2.15 inches (default narrow tires), matching tires: 2.5-12, 3.5-12, etc.
 * 12x3.5 inches (default narrow tires), matching tires: 2.5-12, 3.5-12, etc.
 * 12x3.5 inches (wide tires)
 * Magnet height: 30 mm, 28 pole pairs
 * Stator: Aluminum core
 * Power rating: 1500 watts
 * Speed (customizable):
 * 48V 30km/h~60km/h 300-800RPM
 * 60V 30km/h~60km/h 300-1000RPM
 * 72V 30km/h~60km/h 300-1250RPM

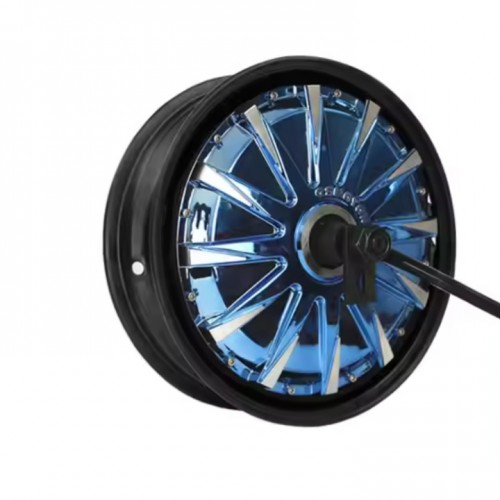

 * Color: black (default), yellow or white/illuminated
 * Waterproof rating: Waterproof rating: IP54
 * 6mm² phase wire
 * Number of drop-outs: 200 mm
 * Brake type: Disc brake (default), PCD3*80 mm-M8, CB 58 mm
 * Maximum efficiency approx. 88
 * Thermal probe Thermal probe: KTY83-122 (default, optional)
 * KV: 8.52 (optional)
 * Maximum torque approx. 141.5 N.m
