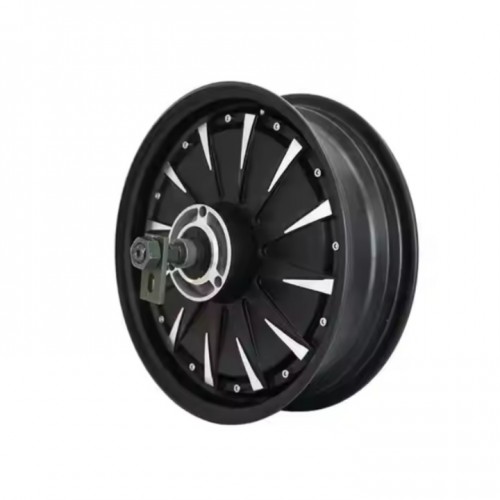

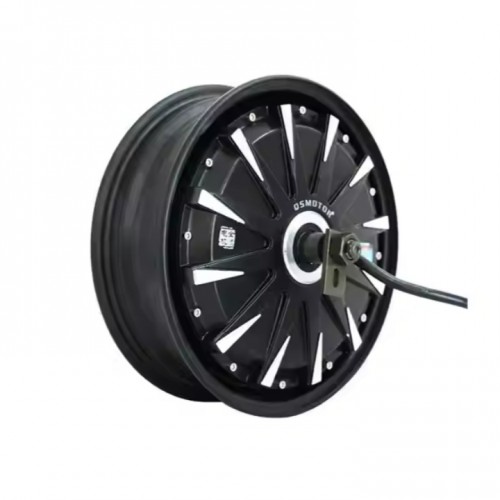

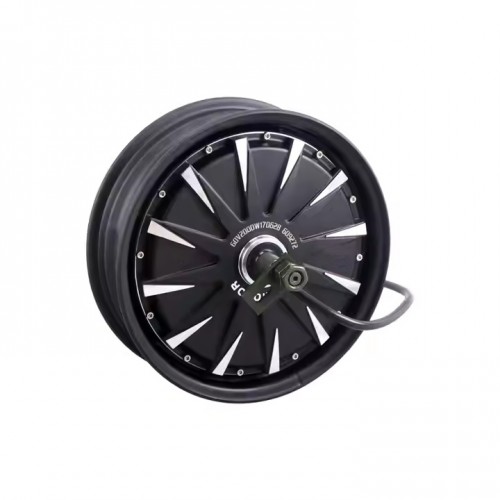

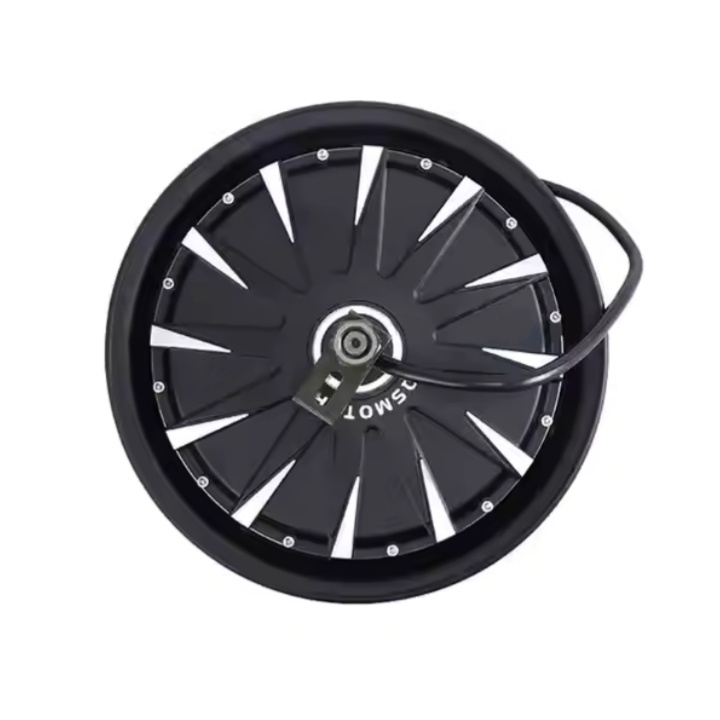

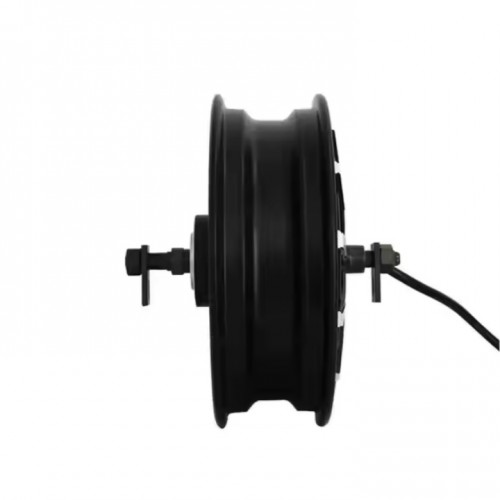

Motor Type: BLDC Outrunner Hub Motor with Hall Sensor
Motor Design: Dual Axis with 12 inch Moped Rims (Integrated)
Rim Size: 12x2.15inch (Default Narrow Tire), Matching Tires: 2.5-12,3.5-12 etc.
12x3.5inch (Wide Tire)
Magnet Height: 27mm, 28 Pole Pair
Stator: Aluminum Core
Rated Power: 1200W
Speed (customizable):
48v 30km/h~60km/h 300-800 rpm
60v 30km/h~60km/h 300-1000 rpm
72v 30km/h~60km/h 300-1250 rpm
Maximum torque approx. 110.0N.m
KV: depends on Customer's maximum speed requirement (optional)
Thermal probe: KTY83-122 (default, optional)
Maximum efficiency approx. 88%
Brake type: Disc brake (default), PCD3*70mm-M8, CB 58mm
Descaling: 200mm
Single hall with waterproof connector (customizable crazy double hall)
2.5mm² phase line
Waterproofing rating: IP54
Colors: black (default), yellow or white/luminous
