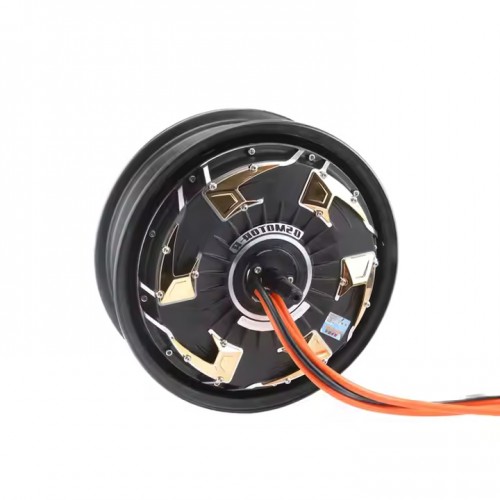

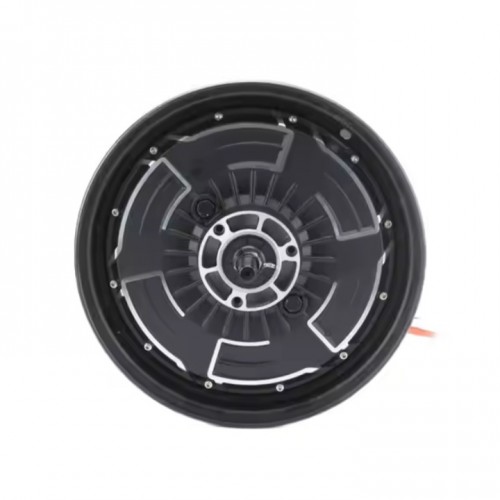

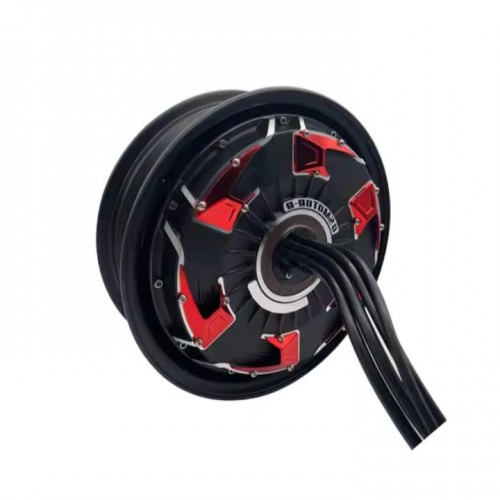

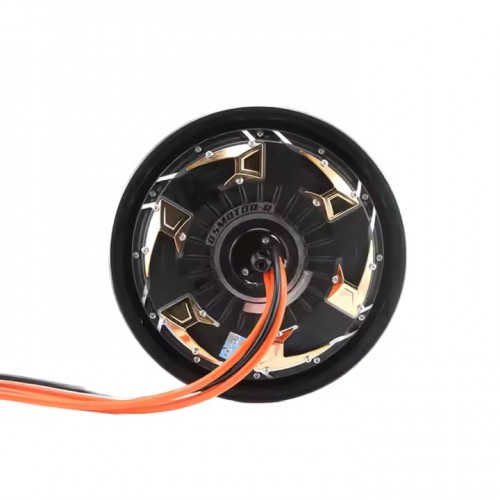

Motor Type: BLDC Outrunner Hub Motor with Hall Sensor
Motor Design: Dual Axle with 12 inch Moped Rims (Integrated) Rim Size: 12x2.15 inch (Default Narrow Tires), Matching Tires: 2.5-12,3.5-12 etc. 12x3.5 inches (Wide Tires)
Magnet Height: 50mm, 16 Pole Pair
Stator: Aluminum Core
Rated Power: 6000W
Speed: 30KPH-110KPH, it is customized, usually we design it as 72V85KPH.
Operating voltage range: 48V-96V, default is 72V.
Maximum torque is about 280.0N.m
KV: depends on the customer's maximum speed requirement (optional)
Thermal probe: KTY83-122 (default, optional)
Maximum efficiency is about 88%
Brake type: Disc Brake (default), PCD3*80mm-M8, CB 58mm
Dislodgement: 200mm (customizable 230mm)
Double Hall with waterproof connector (1 spare in case of damage)
16mm² phase cable
Waterproof rating: IP54
Color: Black
