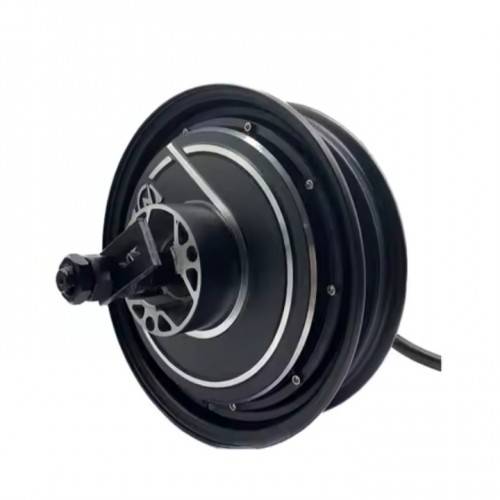

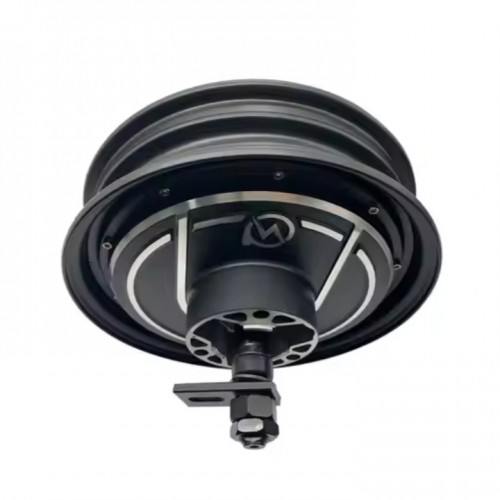

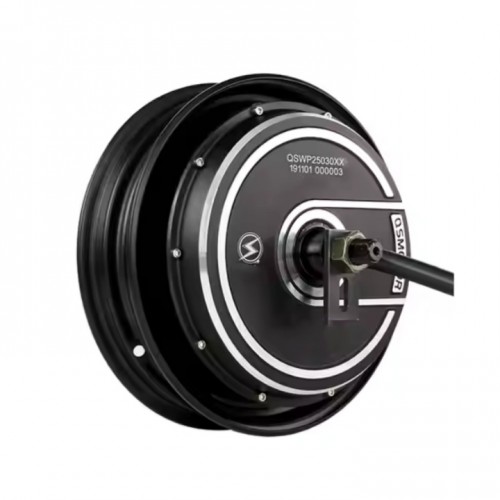

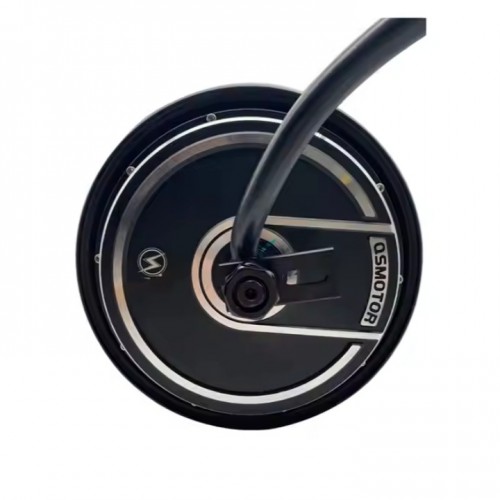

QS Motor 10*2.15 inch 5000W 212 V4 72V 100kph Electric Hub Motor Brushless DC
$270.00
1Piece Minimum order
PRODUCT PARAMETERS
Motor type: Brushless DC motor (BLDC motor)
Shaft configuration: 2
Rim section: 10"
Braking system: disc brake
Rated speed: 140 km/h
Voltage range: 48-120 V
Magnet height: 60 mm
Speed: 1300
Output rating: 5 kW
Number of pole pairs: 16
Maximum efficiency: ≥ 90%
Number of Hall Elements: 2
Hall Sensor phase: 120 °
Motor Number of phases: 3
Phase wire cross-section: 16 square
Waterproof rating: IP67 Protection rating
Shaft configuration: 2
Rim section: 10"
Braking system: disc brake
Rated speed: 140 km/h
Voltage range: 48-120 V
Magnet height: 60 mm
Speed: 1300
Output rating: 5 kW
Number of pole pairs: 16
Maximum efficiency: ≥ 90%
Number of Hall Elements: 2
Hall Sensor phase: 120 °
Motor Number of phases: 3
Phase wire cross-section: 16 square
Waterproof rating: IP67 Protection rating
