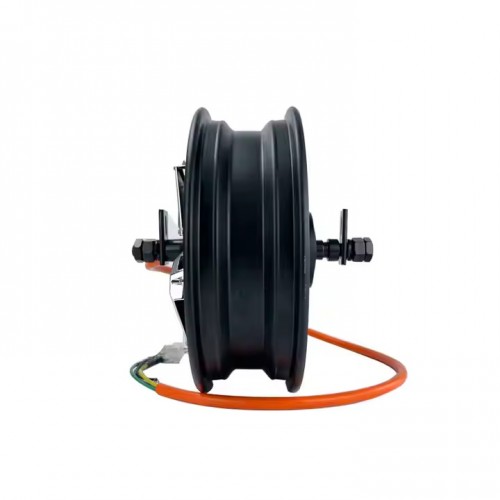

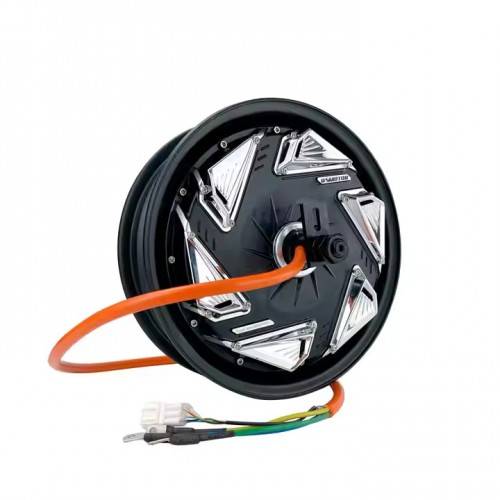

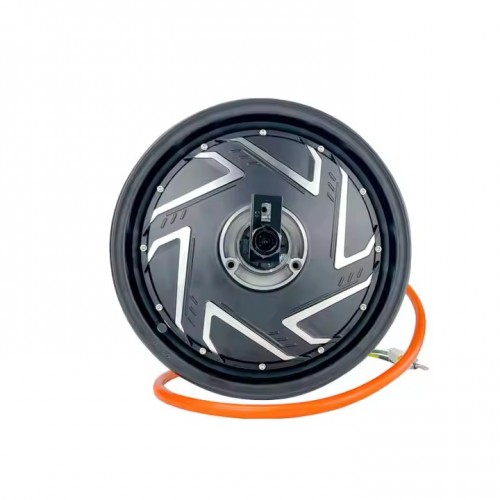

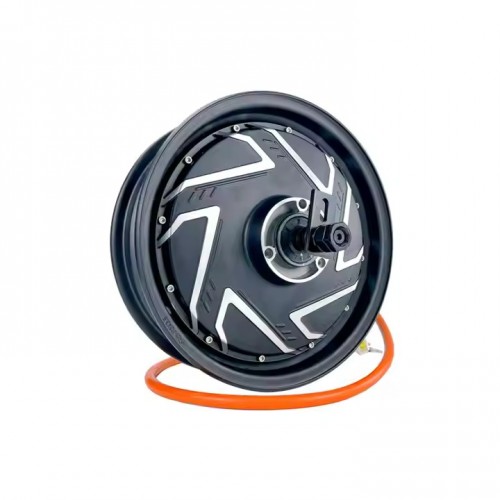

QSMOTOR 12-inch 3000W 205 V1 48V - 96V BLDC Hub Motor Scooter Motor

$140.00

1Piece Minimum order

  • Business type: e-motorcycle

PRODUCT PARAMETERS

-Motor Type: BLDC Outrunner Hub Motor with Hall Sensor
Motor design: dual axle with 10-inch moped rims (integrated)
- Rim size: 12x2.15 inches (default narrow tires), matching tires: 3.0-10,3.5-10, etc.
-12x3.0 inches (wide tires) and 12x5.5 inches (customized)
-Magnet height: 55mm, 16 pole pairs
-Stator: Aluminum core
-Power rating: 2000W -Speed (customizable):
 48v 21km/h~65km/h
 60v 26km/h~80km/h
 72v 32km/h~80km/h
-Maximum torque about 201N.m
-Thermal probe: KTY83-122 (default, optional)
-Maximum efficiency approx. 88
-Brake type: Disc brake (default), PCD3*80mm-M8, CB 58mm
-Shedding number: 200mm
- Double Hall with waterproof connector (one spare in case of damage)
-10mm² phase cable
- Waterproof rating: IP54
- Color: Black
