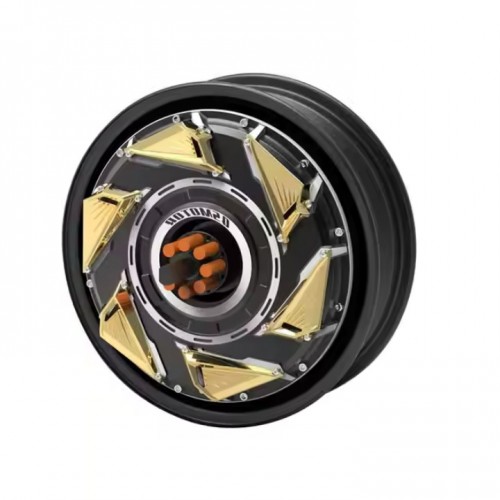

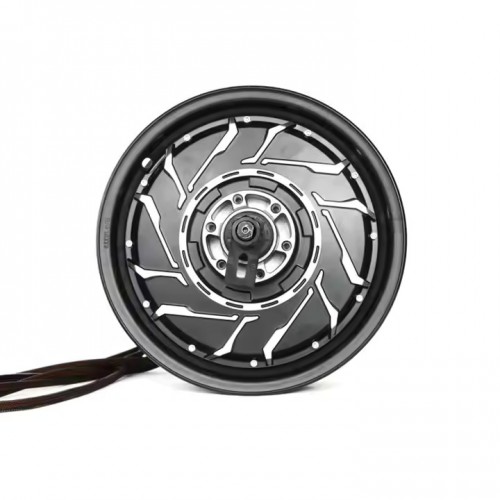

MOTOR TYPE: BLDC Outrunner Hub Motor with Hall Sensor
MOTOR DESIGN: Dual Axis with 12-inch Moped Rims (Integrated)
Rim Size: 12x3.5 inches
Magnet Height: 70mm, 16 Pole Pair
STATOR: Aluminum Core
RATED POWER: 10,000W
SPEED: 30KPH-150KPH, it is customized, usually we will design it for 72V120KPH.
Operating voltage range: 48V-96V, default is 72V.
Maximum torque approx. 350N.m
KV: depends on customer's maximum speed requirement (optional)
Thermal probe: KTY83-122 (default, optional)
Maximum efficiency Approx. 88%
Brake type: Disc brake (default), PCD3*80mm-M8, CB 58mm
Disengagement: 230mm
Dual Hall with waterproof connector (1 spare in case of damage)
25mm² phase cable
Waterproof rating: IP54
Color: Black
