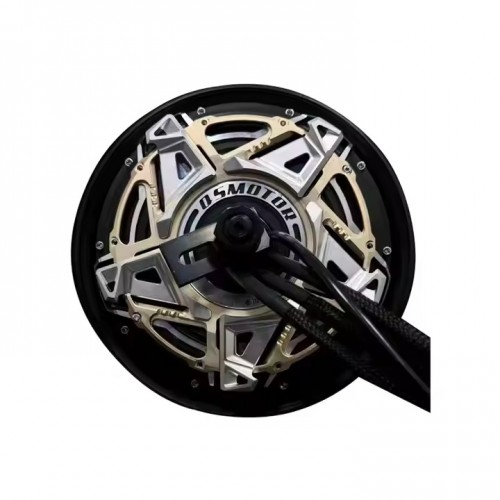

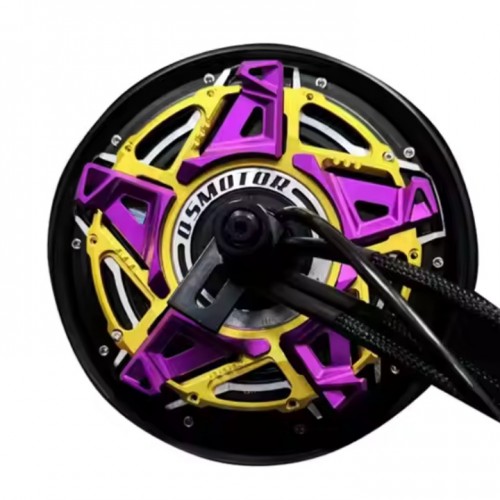

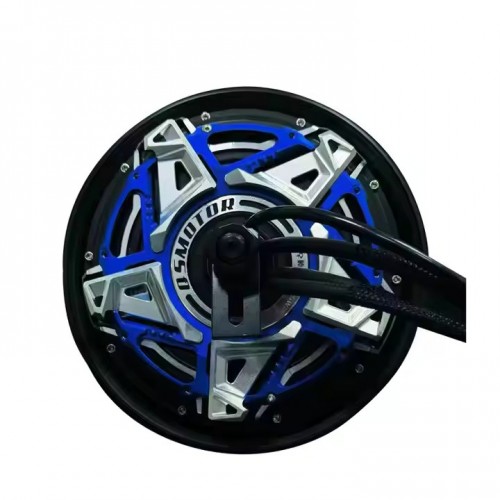

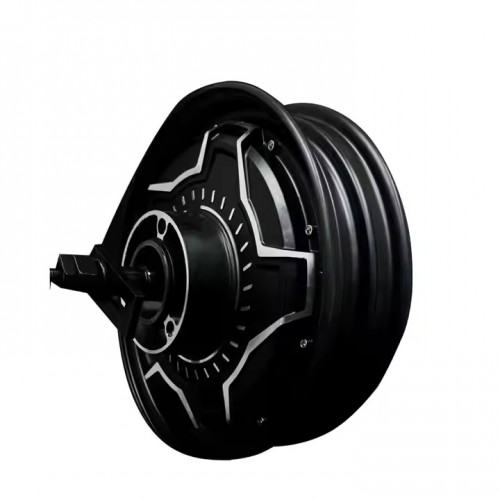

Motor type: BLDC external rotor hub motor with Hall sensor
Motor design: dual axle with 12-inch moped rims (integrated)
Rim size: 12x2.15 inches (narrow tires by default), matching tires: 2.5-12,3.5-12, etc. 12x3.5 inches (wide tires)
Magnet Height: 45mm, 16 pole pairs
Stator: aluminum core
 Rated power: 5000W
Speed: 30KPH-100KPH, it is customized, we will design for 72V80KPH.
Working voltage range: 48V-96V , default is 72V.
Maximum torque about 240.0N.m
KV: depends on customer's maximum speed requirement (optional)
Thermal Probe: KTY83-122 (default, optional)
Maximum efficiency approx. 88%
Brake type: disc brake (default), PCD3*80mm-M8, CB 58mm
Dropping difference: 200mm (customized 230mm)
Dual hall with waterproof connector (one spare in case of damage)
16mm² phase cable
Waterproof rating: IP54
Color: black
