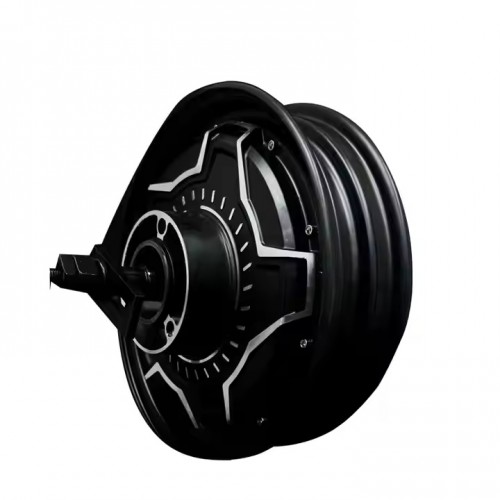

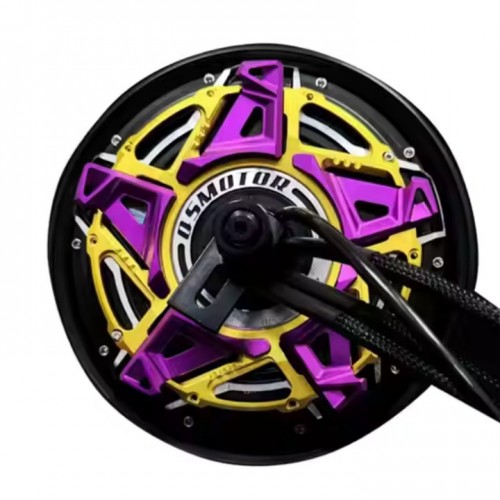

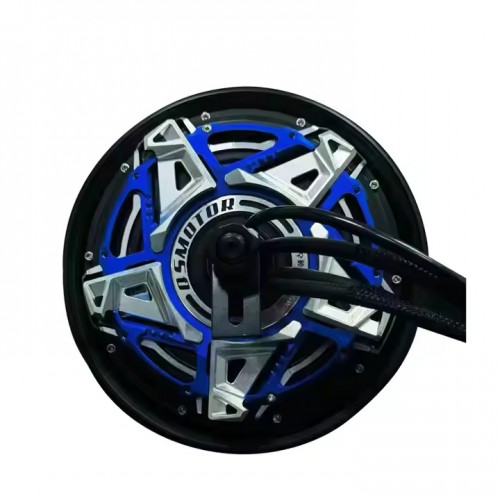

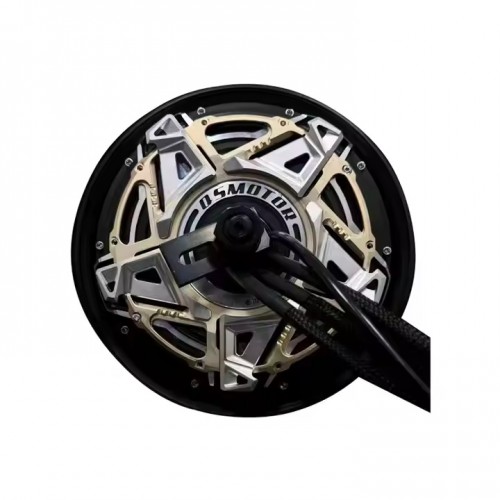

Motor Type: BLDC Outer Rotor Hub Motor with Hall Sensor
Motor Design: Dual Axis with 12 inch Moped Rims (Integrated)
Rim Size: 12x3.5 inches
Magnet Height: 70mm, 16 Pole Pair
Stator: Aluminum Core
Rated Power: 10,000W
Speed: 30KPH-150KPH, it is customized, we will design it for 72V120KPH.
Operating Voltage Range: 48V-96V, default 72V.
Maximum torque approx. 350N.m
KV: depends on customer's maximum speed requirement (optional)
Thermal Probe: KTY83-122 (default, optional)
Maximum Efficiency approx. 88%
Brake Type: disc brake (default), PCD3 * 80mm-M8, CB 58mm
Dropout Pressure: 230mm
Double hall with waterproof connector (one spare in case of damage)
25mm² phase cable
Waterproof rating: IP54
Color: black
