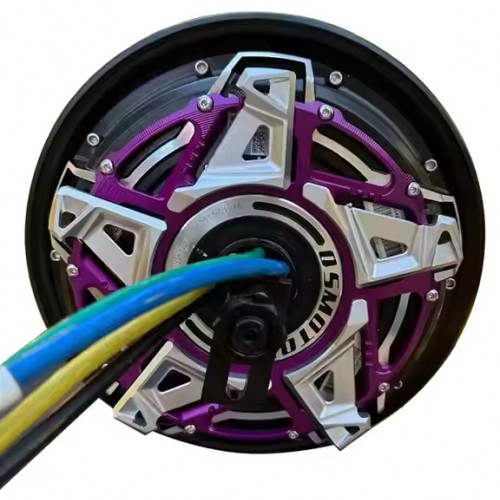

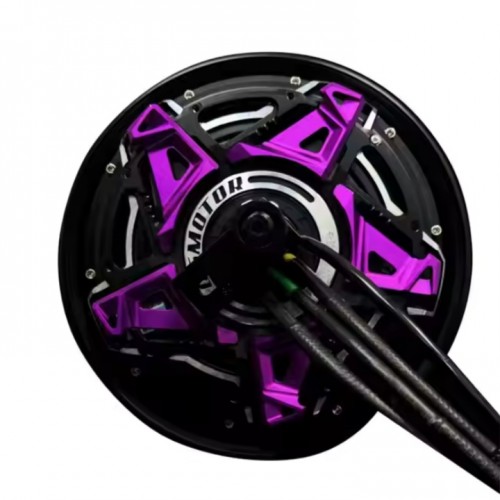

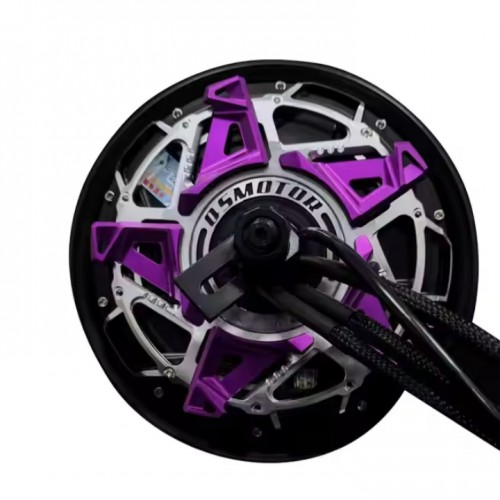

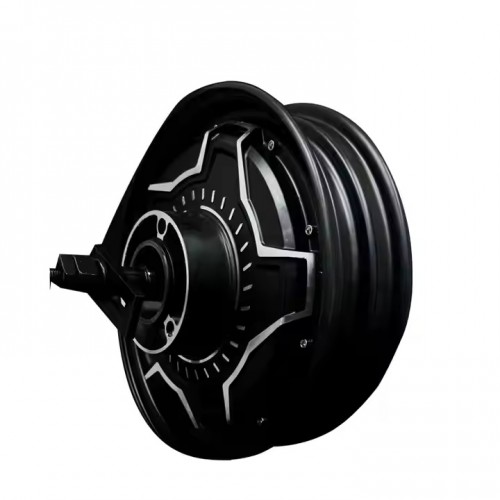

Motor Type. BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
Motor Design. Double axle with 12inch moped rim (integrated)
Rim size: 12x3.5inch
Magnet Height: 60mm, 16 pole pairs
Stator. Aluminum Core
Rated Power: 8000W
Speed: 30KPH-130KPH, it's customized, genearlly we will design as 72V100KPH.
Work voltage range: 48V-96V, will be 48V-96V, will be 72V as default.
Max Torque approx 330N.m
KV: Depends on customer's top speed requirement(optional)
Thermic Probe. KTY83-122 (as default, optional)
Max Efficiency approx 88%
Brake type. Disc brake (as default), PCD3*80mm-M8, CB 58mm
Drop-outs: 230mm
Dual Halls with waterproof connectos(One for spare, in case of damage)
25mm² Phase Wire
Waterproof Grade: IP54
Color: Black
