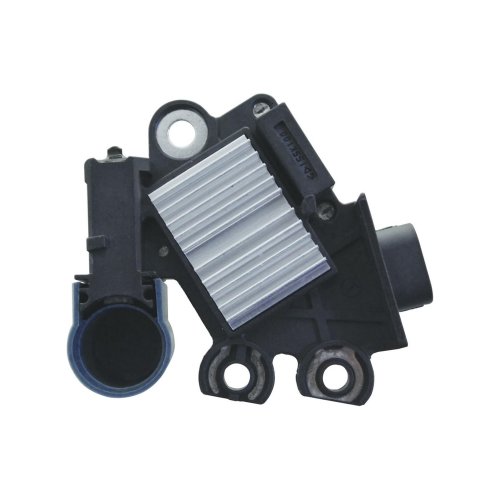

SPECIFICATIONS: 12 Volt, B-Circuit, High Side Drive Regulator, F-L Terminals, 13.8 Vset
DIMENSIONS: 14mm ID Brush Ring
NOTE 1: Plug Code 346 Transpo
FEATURE 2: VSet controlled by Vehicle RVC system
FEATURE 3: Field Rating 5 Amps
FEATURE 4: Field Short Circuit Protection
FEATURE 5: Stator or RVC Activated
This list is a sample of all the compatible cars for this part. Make sure this product fits your car by using the part finder above.
REPLACEMENT FOR or COMPATIBLE WITH SAAB:
9-5 L4 2.0L (11-11)
REPLACEMENT FOR or COMPATIBLE WITH GMC:
Terrain V6 3.0L (10-12)
Terrain L4 2.4L (10-17)
REPLACEMENT FOR or COMPATIBLE WITH CHEVROLET:
Trax L4 1.4L (15-20)
Impala Limited V6 3.6L (14-16)
Impala V6 3.6L (12-20)
Equinox V6 3.0L (10-12)
Equinox L4 2.4L (10-17)
Cruze Limited L4 1.4L (16-16)
Cruze L4 2.0L (14-15)
Cruze L4 1.8L (11-16)
Cruze L4 1.4L (11-15)
Captiva Sport V6 3.0L (12-12)
Captiva Sport L4 2.4L (12-15)
Camaro V8 6.2L (10-15)
Camaro V6 3.6L (10-12)
REPLACEMENT FOR or COMPATIBLE WITH CADILLAC:
SRX V6 3.6L (12-12)
SRX V6 3.0L (10-11)
REPLACEMENT FOR or COMPATIBLE WITH BUICK:
Verano L4 2.4L (12-17)
Verano L4 2.0L (13-16)
Regal L4 2.4L (11-17)
Regal L4 2.0L (11-13)
LaCrosse V6 3.6L (10-16)
LaCrosse V6 3.0L (10-10)
LaCrosse L4 2.4L (11-11)
Encore L4 1.4L (13-19)
Cascada L4 1.6L (16-19)
