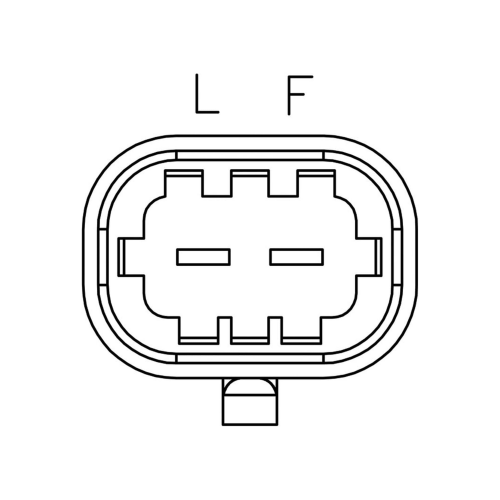

SPECIFICATIONS: 12 Volt, B-Circuit, L(RC)- F(FR) Terminals, 13.8 Default Vset
NOTE 1: L is not traditional lamp terminal.
NOTE 2: Vset controlled by vehicle RVC system
NOTE 3: L(RC) terminal is computer RVC(PWM) connection, not Lamp
NOTE 4: Regulator damage if tested as Lamp connection Transpo
FEATURE 2: Field short-circuit protection
This list is a sample of all the compatible cars for this part. Make sure this product fits your car by using the part finder above.
REPLACEMENT FOR or COMPATIBLE WITH SATURN:
Vue V6 3.6L (08-10)
Aura V6 3.6L (08-09)
REPLACEMENT FOR or COMPATIBLE WITH PONTIAC:
Torrent V6 3.4L (07-09)
REPLACEMENT FOR or COMPATIBLE WITH CHEVROLET:
Malibu V6 3.6L (08-12)
Equinox V6 3.4L (07-09)
Camaro V6 3.6L (13-15)
