Specifications:

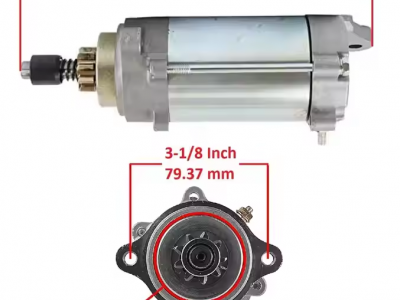

* Specs: Starter, Voltage: 12, Rotation: CW, Starter Type: PMDD, Number of Teeth: 9, Gear OD: 1.142in / 29mm, Length: 6.484in / 164.7mm, Mtg Ear 1 Hole: M8x1.25 Threaded, Mtg Ear 2 Hole: M8x1.25 Threaded, Mtg Ear 3 Hole: 8.5mm x 10.8mm Slotted, Mounting Ear Center to Center 1: 3.122in / 79.3mm, Registry OD: 2.362in / 60mm, Notes: Third Mounting Hole On CE Housing, M6 B+ Stud
* Replaces OEM Part Numbers: Bombardier: 515-176-754, 515-176-858, 515-177-389, Denso: 428000-6330, 428000-7011
Compatible With:
LYNX XTRIM 800 w/799cc 2008-09SKI-DOO EXPEDITION TUV-600 w/597cc
2009-10SKI-DOO GSX LTD 600HO 2009SKI-DOO MX Z 500SS 2009SKI-DOO MX Z 600HO 2009SKI-DOO MX Z 800R 2009SKI-DOO
EVEREST 500SS 2009SKI-DOO, EVEREST 600HO 2009SKI-DOO EVEREST 800R 2009
Item Condition: NEW, AFTERMARKET Unit Type: Starter
Part Type: UNIT
Voltage: 12
Rotation: CW
Teeth: 9
BOMBARDIER: 515-176-754, 515-176-858, 515-177-389
DENSO: 428000-6330, 428000-7011
