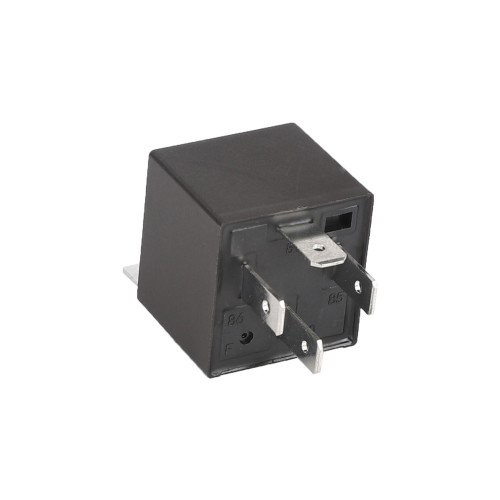

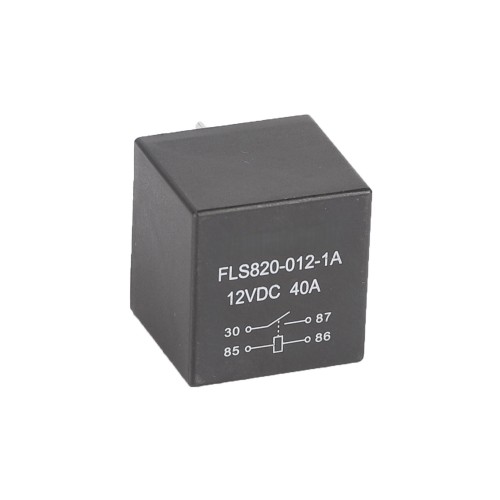

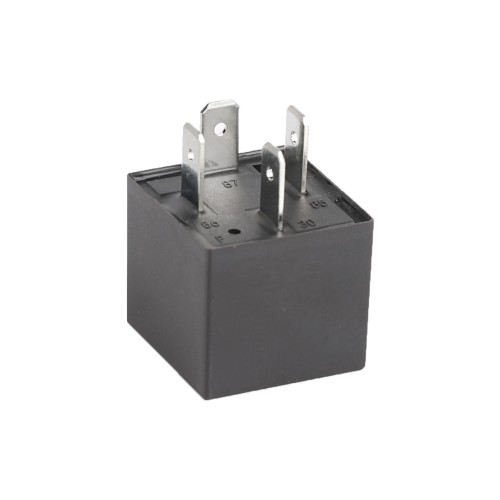

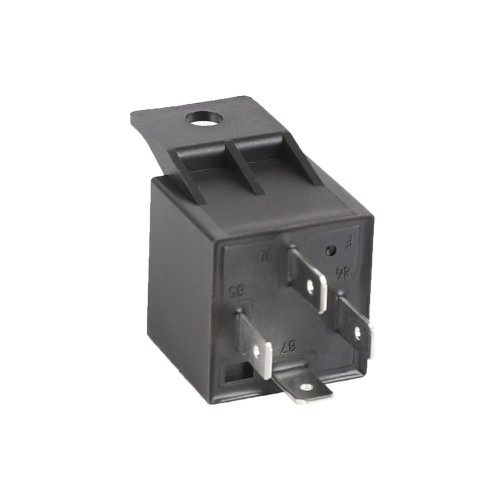

12V 40A 4-Terminal Mini Car Relay, Suitable for Skoda
$7.99
1Piece Minimum order
PRODUCT PARAMETERS
Voltage
12V/24V
Rated Current
20A-80A
Max Operating Current
40A
Max Operating Voltage
27VDC
Rated Load (Resistive Load)
1A: 40A 13.5VDC 20A 27VDC
1C: MO/NC 40A/30A 13.5VDC 20A/15A 27VDC
Insulation Resistance
100MΩ
Dielectric Strength (Coil and Contact)
500VAC/M
Ambient Temperature
-40°C to +85°C
Operate/Release Time
10ms/10ms
12V/24V
Rated Current
20A-80A
Max Operating Current
40A
Max Operating Voltage
27VDC
Rated Load (Resistive Load)
1A: 40A 13.5VDC 20A 27VDC
1C: MO/NC 40A/30A 13.5VDC 20A/15A 27VDC
Insulation Resistance
100MΩ
Dielectric Strength (Coil and Contact)
500VAC/M
Ambient Temperature
-40°C to +85°C
Operate/Release Time
10ms/10ms
