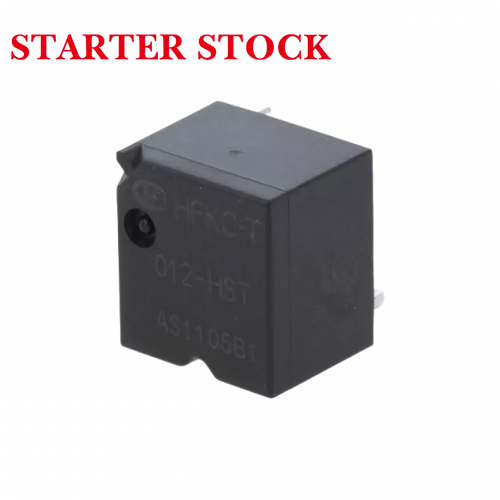

Ultra-compact automotive relay
Weight only 4 grams (single relay)
Single or dual relays available
1. Coil voltage type: DC
2. Coil operating voltage: 12
3. Contact configuration: One set of normally open contacts
4. Number of contacts: Single contact
5. Terminal type: PCB-mount
6. Mounting type: PCB mounting
7. Package type: Plastic-encapsulated
8. Coil power rating: Standard
9. Coil characteristic: Monostable
10. Contact material: AgSnO₂
11. Packaging: Tube & carton
12. Load voltage: 13.5
13. Rated coil power: Approx. 0.55W
14. Dielectric withstand voltage: 500VAC 1min
15. Actuation time (unit: ms): ≤10
16. Release time (unit: ms): ≤10
17. Insulation resistance (unit: MΩ): 100
18. (AC)    -    最大额定切换电流(DC)    30
最大切换电压（AC）    -    最大切换电压（DC）    16    温度范围    -40 ℃ - 105 ℃
机械耐久性（单位：次）    10000000    电耐久性（单位：次）    300000(更多细节请参阅样本)    触点间隙（单位：mm）    -
产品应用领域    中央门锁， 雨刮控制， 仪表控制， 自动门窗， 防盗系统， 后窗和座椅加热控制， 照明灯/闪光灯/指示灯控制    产品应用场合    -
重量（单位：g）    约4    体积（单位：mm3）    12.9×12×9.9
