Characters

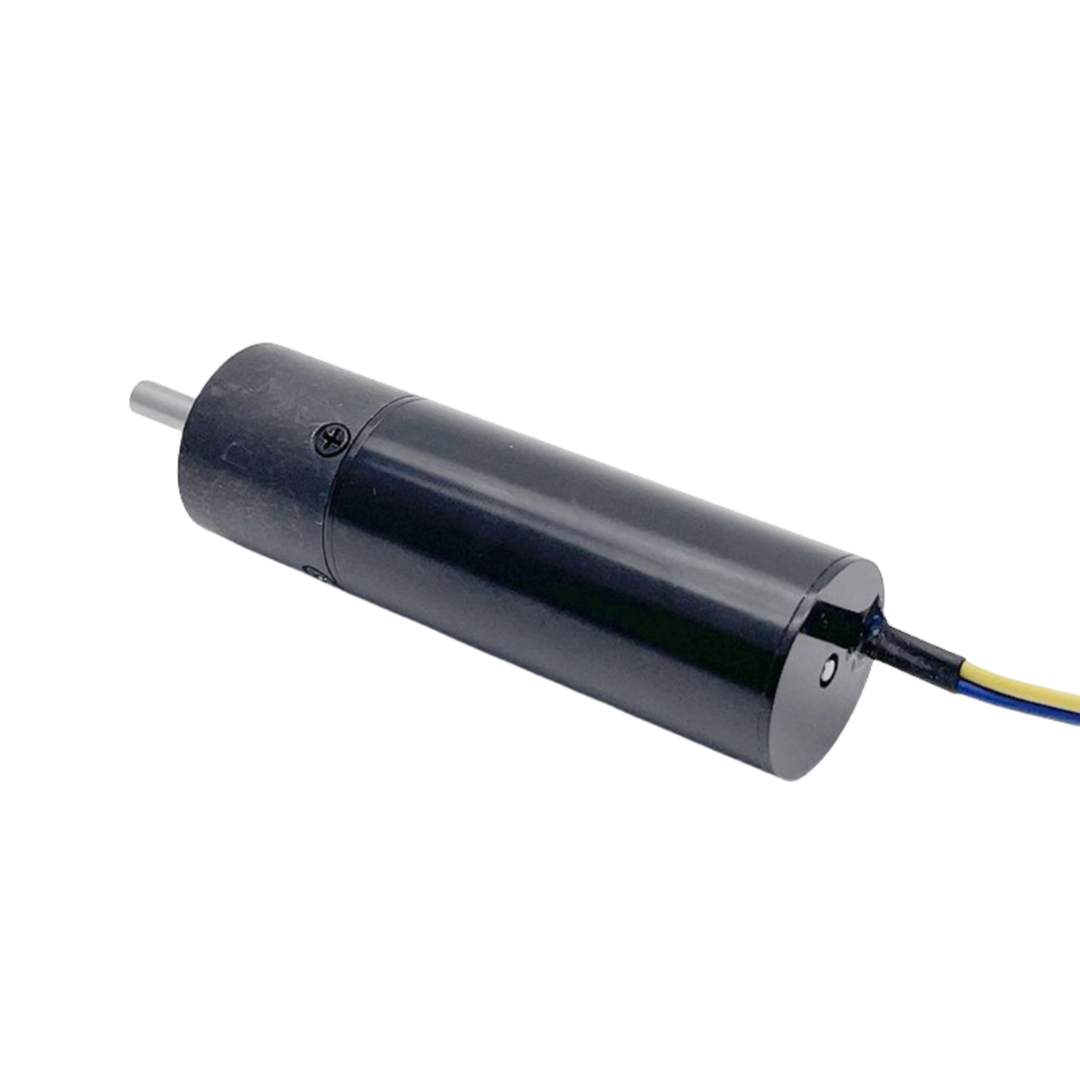

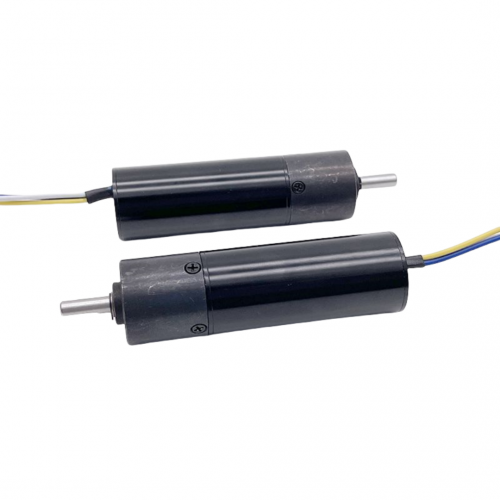

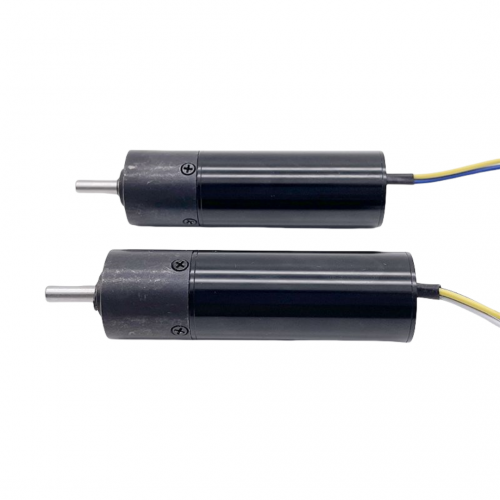

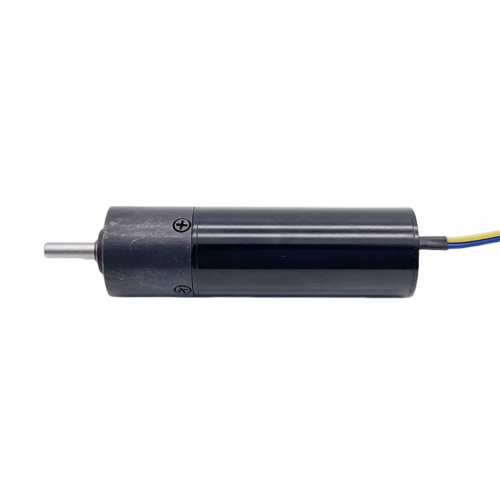

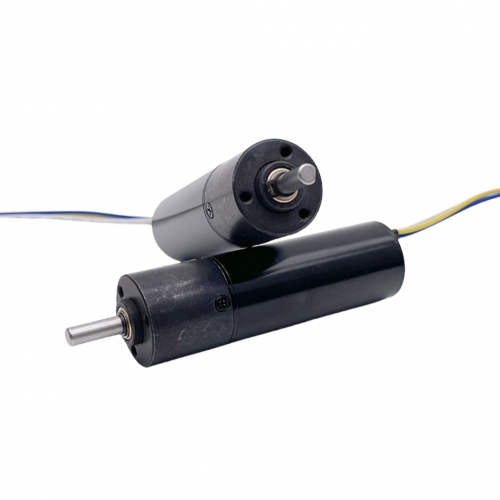

1. Small size dc gear motor with low speed and big torque
2.22mm gear motor provide 0.8Nm torque and more reliable
3. Suitable to small diameter, low noise and big torque application
4. Reduction Ratio: 16、64、84、107、224、304、361、428.7、1024
A planetary gearbox is a commonly used reducer consisting of the planet gear, sun gear, and outer ring gear, whose structure has the functions of shunting, deceleration, and multi-tooth meshing to improve the output torque, better adaptability, and work efficiency. The sun gear is usually placed in the center, and the planet gears orbit around the sun gear, receiving torque from it. The outer ring gear (refers to the lower housing) meshes with the planet gears. We provides optional motors, such as brushed DC motors, DC brushless motors, stepper motors, and coreless motors, which can be matched with micro planetary gearbox for better performance.
Wide range of micro planetary gearboxes: diameter 12-60mm, output speed 3-3000rpm, gear ratio 5-1500rpm, output torque 0.1 gf. cm-200 kgf.cm.
Application
Robot,lock,Auto shutter, USB fan,Slot machine,Money detector
Coin refund devices,Currency count machine,Towel dispensers
Automatic doors,Peritoneal machine,Automatic TV rack,
Office equipment ,Household appliances,etc.
Automotive Application Market:
Electric power steering system, electronic suspension system, car stability control system, car cruise control system, ABS, body system (Windows, door locks, seats, mirrors, wipers, sunroof, etc.)
5G communication:
Base station antenna, cooling fan, air conditioning compressor
