Feature

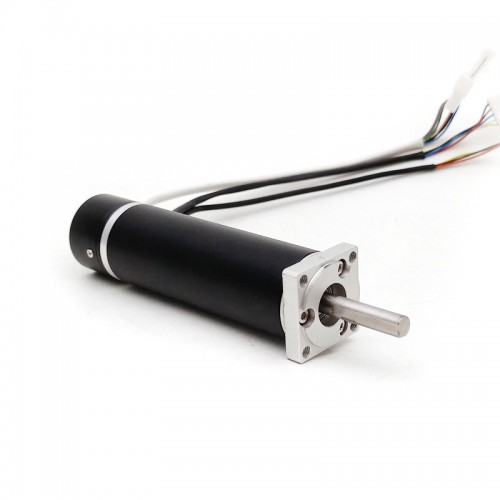

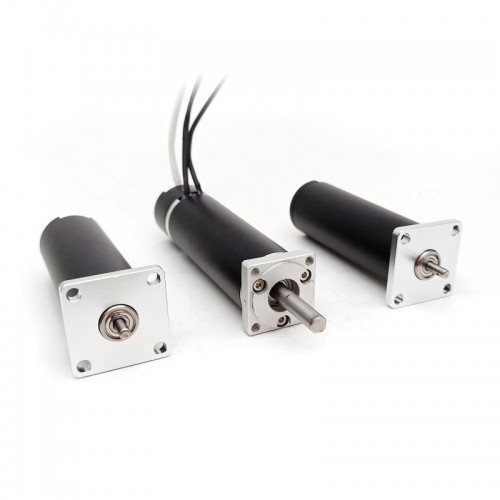

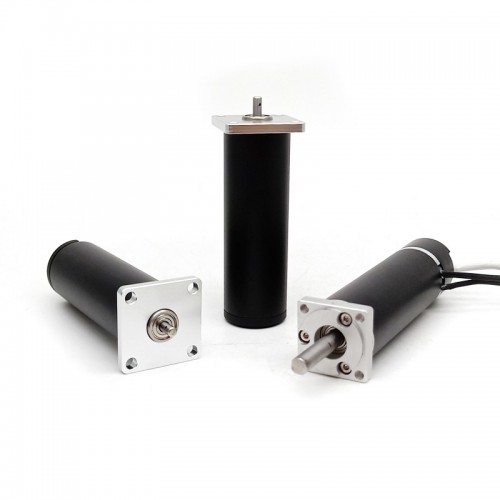

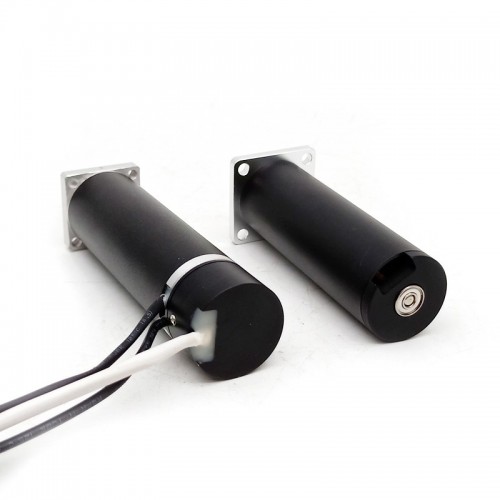

High speed slotted brushless motor, 22mm in diameter, 66mm in height; High - performance hollow - cup motor adopts folded hollow - core winding and no core rotor. This special height meter gives us the advantages of high speed, high torque and low noise. Because there is no slot effect and compact structure, it can run smoothly at high and low speed for mechanical transmission, more accurate control, high efficiency and power density.
1. TBC2266 motor advantage
1) High reliability, change motor rotation by hall sensor insteading of motor brush, with low noise.
2) Smaller electromagnetic interference, long lifespan, up to 20000 hours.
3) High efficiency, NdFeB magnet rotor.
4) Small size, and less weight, PWM control.
5) Options:Lead wires length,Shaft length,Special coils,Gearheads, Bearing type ,Hall sensor,Encoder,Driver
Application
Business Machines:
ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:
Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Camera and Optical:
Video, Cameras, Projectors.
Lawn and Garden:
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Medical
Mesotherapy,insulin pump,hospital bed,Urine Analyzer
Parameters
The benefits of TBC series dc coreless brushless motors.
1. The characteristic curve is flat, and it can operate normally at all speeds under load.
2. Because of the usage of a permanent magnet rotor, the power density is high while the volume is modest.
3. Low inertia and improved dynamic properties.
4. No special starting circuit, no rating.
5. A controller is always required to keep the motor operating. This controller can also be used to control the speed.
6. The frequency of stator and rotor magnetic fields is equivalent.
