Universal Position of the Wiper Motor

The wiper motor is the power core of the windshield wiper system. Its installation follows the logic of “proximity to transmission, risk avoidance”:

● It must be adjacent to the wiper arm’s linkage/rocker mechanism (to minimize power loss).

● It must avoid the engine’s high-temperature zone and direct rainwater erosion.

Industry-Standard Placement:

Over 90% of vehicles mount the wiper motor behind the front windshield cowl panel (also called a “rain collector plate”)—the plastic cover between the front hood and windshield.

Quick Identification Features

a.  Physical Appearance:

A black cylindrical or square housing (10–15cm in diameter, 15–20cm in length). It has 3–4 metal linkages (connecting to wiper arms) and 1–2 wire harnesses (red/black power cables + thin control wires).

b.

b.  Surrounding References:

Typically adjacent to the washer fluid reservoir (transparent/translucent plastic tank with a blue cap) or HVAC air intake. Some Volkswagen/Toyota models use a black plastic cover to protect the motor—remove the cover to access the motor.

c.  Mounting Method:

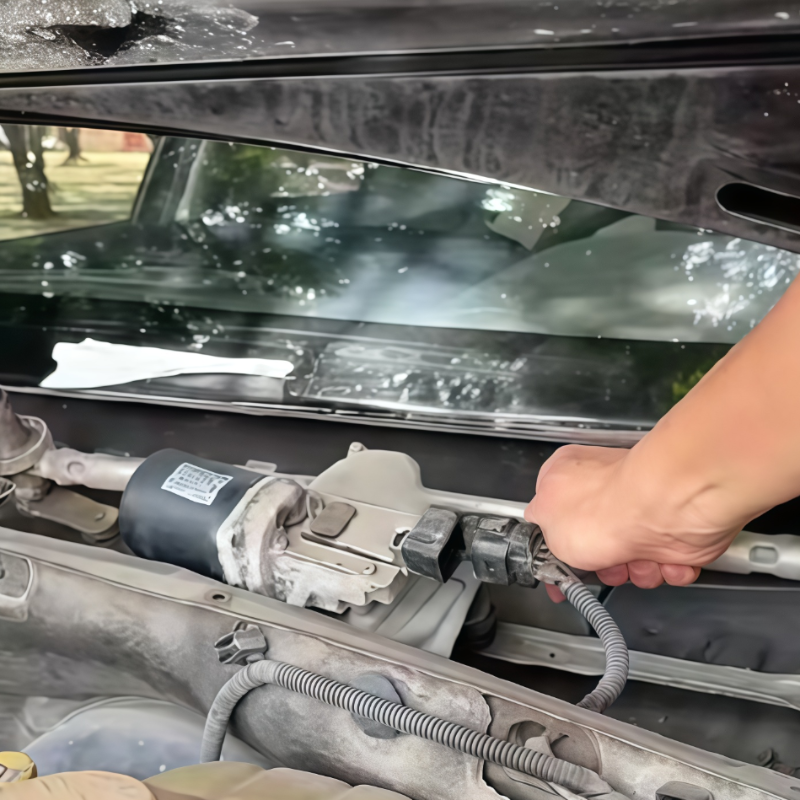

Secured to the vehicle’s body sheet metal with 3–4 M6 or M8 screws. Before disassembly, disconnect the snap-fit wire harness plug (press the plug’s side tab to pull it out).

Key Differences: Wiper Motor Placement by Vehicle Type

The universal position serves as a baseline, but placement varies by vehicle structure (a common source of confusion for users).

1. Sedans/Compact Vehicles: Standard Layout (Easy Access)

These vehicles have a compact design, so the wiper motor has no complex obstructions and is easy to locate.

a. Gasoline Vehicle Examples (2025 Toyota Camry, Older Volkswagen Lavida)

● Step 1: Open the front hood and find the cowl panel (fixed with 2–3 plastic clips).

● Step 2: Gently pry the clips open with a flathead screwdriver to remove the cowl panel.

● Location: The motor sits on the right side (from the driver’s perspective), adjacent to the washer fluid reservoir. Its linkages connect directly to the wiper arm’s pivot.

● Pro Tip: Trace the wiper arm downward to the metal linkage joint—the motor is 10–15cm behind this joint.

b. EV Examples (2025 BYD Dolphin, Wuling Bingo)

● The motor remains under the cowl panel but shifts closer to the frunk (front trunk) (to save engine bay space).

● Note: The BYD Dolphin has a silver electromagnetic shield (metal cover) near the motor—this prevents interference from the high-voltage battery, so do not mistake it for an unrelated component.

2. SUVs/Off-Road Vehicles: Rearward Placement (Extra Covers May Apply)

SUVs have larger windshields and longer wiper arms, requiring higher-torque motors. The motor is usually positioned closer to the cockpit firewall (rearward) and may be hidden under additional covers.

Standard SUV Examples (2025 Haval H6, Changan CS75 PLUS)

● Step 1: Locate the black plastic cover (marked “Wiper Motor”) in the center under the cowl panel.

● Step 2: Use a socket wrench to remove 4 fixing screws, then pry open 2 clips to take off the cover.

● Location: The motor is connected to a dual-linkage mechanism (for longer wiper arms) and is visible immediately.

● Off-Road Note: For water-wading vehicles like the Jeep Wrangler, the motor has a waterproof rubber boot. Remove the boot first (after taking off the plastic cover) to access the motor.

Premium SUV Examples (2025 Tesla Model Y, Li Auto L7)

● Frunk space constraints shift the motor to the left side under the cowl panel, where it shares a bracket with the HVAC air intake.

● Disassembly Note: The Tesla Model Y’s motor wire harness is integrated into the vehicle’s main harness. Disconnect the orange-latched connector inside the frunk (press the latch to unplug it)—do not pull the harness forcefully.

Commercial Vehicles (Trucks/Buses): Cab-Internal Placement

Trucks and buses use high-power wiper motors (100–150W) with large dimensions, which cannot fit in the front engine bay. The motor is mounted under the cab’s front bulkhead (inside the metal frame below the windshield) and requires interior trim removal.

Example (2025 JMC Transit, Foton Aoling)

● Step 1: Open the cab door and use a plastic pry tool (to avoid scratches) to remove the plastic trim on the right side of the instrument panel.

● Step 2: Locate the motor—fixed to the metal front bulkhead, with a long linkage extending to the windshield wiper arm.

● Positioning Tip: Activate the wipers and listen for a “hum” on the right side of the instrument panel. The clearest sound indicates the motor’s location (no need to remove trim blindly).

Specialized Vehicles: Unconventional Layouts

a. EV Sports Cars (2025 Tesla Roadster)

● The windshield has a steep tilt angle, so the motor is hidden inside the roof liner above the windshield.

● Note: The linkage uses a hidden design (not visible from outside)—do not mistakenly assume the vehicle lacks a wiper motor.

b. Retro Models (Volkswagen Beetle Replica)

● The motor follows classic internal combustion engine (ICE) vehicle design, mounted in the front engine bay (near the grille).

● Identification: The motor has a “Wiper Motor” label, making it easy to distinguish from other components.

3. Practical Tips for Locating & Accessing the Motor

1.Tools to Prepare

● Essential: Flathead screwdriver, plastic pry tool (for clips/trim), socket wrench (for motor mounting screws).

● Optional: Marker pen (to label wiper arm position, if removal is needed).

2. Common Pitfalls to Avoid

a.  Disposable Cowl Clips: Honda/Nissan use one-time plastic clips—replace broken clips with aftermarket “car cowl clips” (available online).

b.  Wiper Arm Misalignment: If removing wiper arms, mark their position on the pivot (e.g., with a marker) to avoid improper reinstallation.

c.  EV High-Voltage Risks: For EVs like Tesla/BYD, avoid touching orange high-voltage cables. Disconnect the 12V battery (usually in the trunk) before working.

Safety & Maintenance Notes

1 .Safety Precautions

● EVs: Always disconnect the low-voltage battery before accessing the motor (prevents electric shock from high-voltage systems).

● Shielding: EV wiper motors have metal EMI (electromagnetic interference) shields—reinstall the green grounding screw after maintenance (to avoid interference with ADAS systems).

2 .Basic Maintenance

● Clean the motor’s surface regularly (removes dust buildup, preventing overheating).

● Check wire harness connectors for corrosion—use WD-40 to clean and protect terminals.

Document Version: 1.0 (2025 Updated)

Technical References: Bosch Wiper Motor Service Manual, Tesla Model Y Maintenance Guide, BYD EV Component Layout Document.
