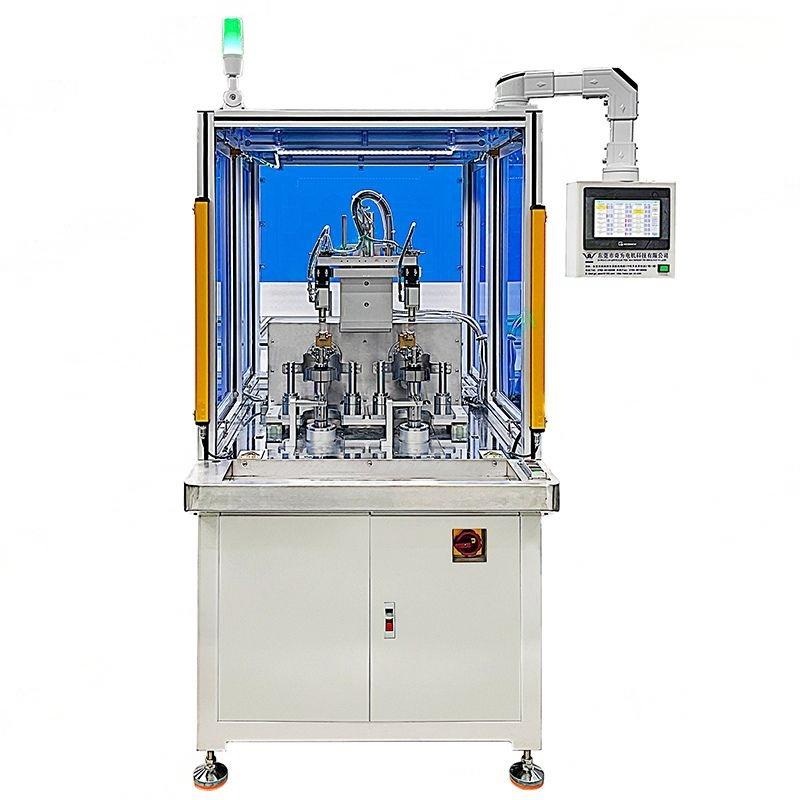

2-station multi-pole coarse wire automatic winding machine R2109

US$ 16000.00 / 1 Piece
1Piece Minimum order
Brand:
QIWEI
About this item
  • Two station ,automatic winding, automatic precisionwiring, automatic pole changing
  • Adopting Qiwei high-speed control system, imported Taiwan HIWIN precision lead screw,Japan Panasonic servo motor driving, Chinese and English touch screen interface，adopting single-station servo independent drive indexing system,improve the stability of the copper wire into the groove.
  • The main structure part uses high-quality casting parts, high-precision processing, solid and reliable
  • Tooling fixtures are imported materials, special heat treatment and a number of grinding processes, high precision, good wear resistance.
  • Equipped with a safety grating, the machine door panel uses photoelectric safety switch, pneumatic scissors, special servo tension system.
Dongguan Qiwei Motor Technology Co., Ltd
1 1 years China
Avg Response Time: ≤24 h
Business Type: Source Material
Chat

Products related to this item

Latest Products from this Supplier

Alternator For 12V TG15C163
12161-93901 Connecting Rod Kit Fit for Suzuki Outboard 9.9HP 15HP 2 Stroke
Alternator Compatible With 15-17 Audi Q3 & Q3 Quattro L4 2.0L TG14C056
Alternator For 12V TG15C167
Car Starter Motor For Caterpillar STN7671WD
Car Starter Motor For Caterpillar STN7671WA
Car Starter Motor For Caterpillar 300N10458Z
Car Starter Motor For Caterpillar 428000-9121
Car Starter Motor For Caterpillar RD17084
Car Starter Motor For Caterpillar 428000-9122
Car Starter Motor For Caterpillar 3545671
Car Starter Motor For Caterpillar STN7671NL

Technical parameters:

Supply voltage：220V+10% 50HZ

Source pressure：0.45-0.7Mpa

Rated power：2.5KW

Rated speed：MAX 2000rpm

Line type precision：0.01 mm

Angular accuracy：+0.1°

Optimum winding diameter：0.10-1.00mm

Overall dimension：1100x760x1 600mm

Machine weight：350KG



Scope of application:

Suitable for the outer diameter Φ30-Φ160mm multi-pole brushless iron core products.
