1 years
China
Certification
Manufactured in ISO9001‑certified production facility. CE documents available upon buyer’s request.
13. Real Product Photos

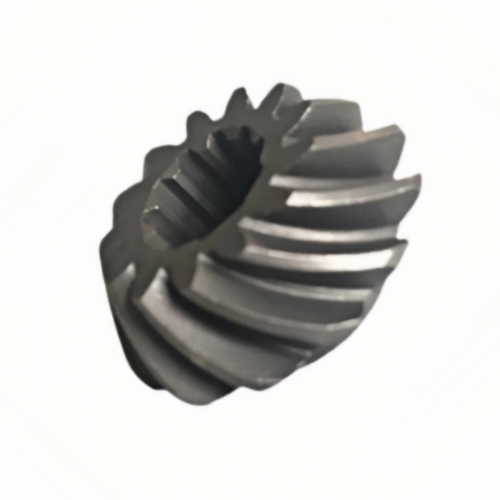

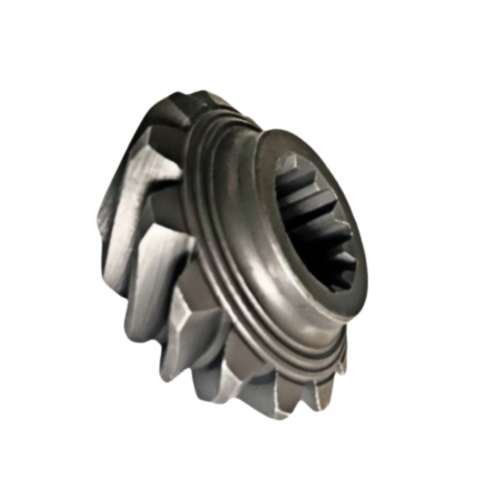

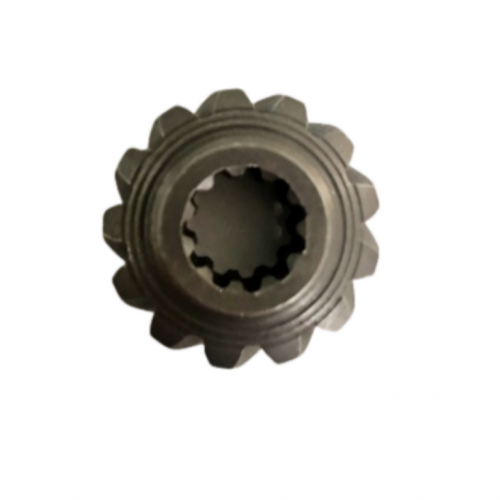

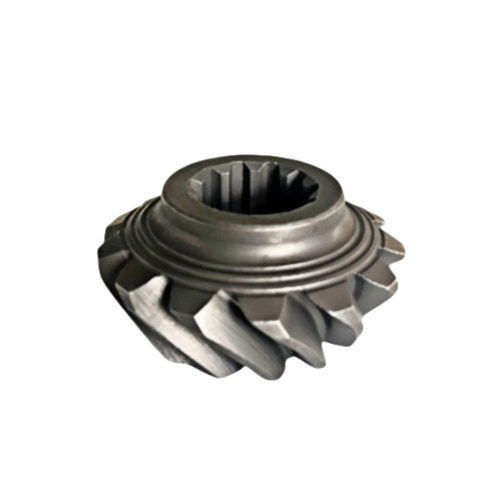

Pinion bevel gear overview shot, bevel tooth close‑up view, inner spline detail view, outboard gear‑case installation reference picture
14. Independent Product Description
This rugged marine pinion bevel gear serves as a capable aftermarket replacement for matched OEM part numbers. It suits Mercury, Quicksilver and Parsun two‑stroke and four‑stroke outboard motors rated at 4‑horsepower and 5‑horsepower, serving as a critical hardware element inside the gear case.
Built from wear‑resistant quenched alloy steel, this component goes through accurate CNC machining alongside thorough heat‑treatment steps. Its sturdy physical build keeps steady structural rigidity under continuous torque loads and salt‑spray marine surroundings. Hardened bevel gear teeth hold up against chipping and scuffing during repeated forward‑reverse gear shifts.
Every shaft‑hole measurement and spline dimension closely follows OEM tolerance benchmarks. Fitters can complete quick, exact installation, and no trimming or secondary rework is necessary.
This practical service‑grade aftermarket part resolves common gearbox troubles, such as choppy power transmission, grinding gear noise, gear jumping and worn‑out tooth surfaces. Swapping out the aged pinion bevel gear restores stable power transfer inside your outboard gear case. Be sure to refer to the official factory service manual for proper mounting and gear‑oil top‑up. Once assembled correctly, your outboard will deliver reliable power‑output performance on open water.
For Tohatsu Nissan Outboard: 369-64020-2 M, 369-64020-0 M
For Mercury Mercuiser Outboard PN: 43-16138, 16138
For Parsun Makara Outboard part number: T5-03000003
Fitment:
Tohatsu Outboard 2.5HP MFS2.5B 2014 Gear Case
Tohatsu Outboard 3.5HP MFS3.5B 2014 Gear Case
Tohatsu Outboard 4HP MFS4C 2014 Gear Case
