6‑month limited warranty covering manufacturing defects. Warranty becomes void for damage resulting from wrong installation, improper application or long‑term exposure to marine corrosive conditions.
12. Certification
Produced within ISO9001‑certified production facility. CE documents can be provided upon buyer’s request.
13. Real Product Photos

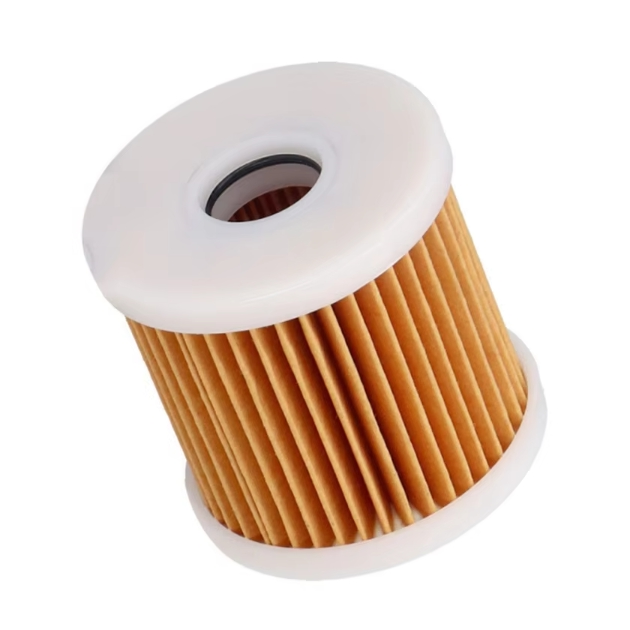

Single filter element close‑up, filter together with O‑ring gasket, reference picture for housing mounting
14. Independent Product Description
This robust marine fuel‑water separator filter element matches Yamaha OE references 90794‑46868‑00, 90794‑46871‑00, 90794‑46911‑00 and 90794‑46913‑00. It serves as a direct drop‑in replacement for two‑stroke as well as four‑stroke Yamaha outboard engines that reach 300HP maximum output.
It adopts high‑efficiency water‑repellent pleated filter media paired with durable nitrile rubber sealing gasket, so it holds stable performance under harsh salt‑spray and damp marine operating surroundings. This component catches rust particles, dirt and fuel‑borne impurities effectively. At the same time, it isolates free water from gasoline and keeps these damaging contaminants away from carburetors, fuel injectors and fuel pumps.
All finished dimensions satisfy OEM tolerance standards accurately. The full kit includes filter cartridge plus well‑matched O‑ring. Operators can finish quick cartridge‑only replacement, and no housing adjustment is necessary.
As a practical aftermarket service‑grade spare, this filter lowers potential risks such as fuel system clogging, rough idle status, engine misfire and power shortage caused by contaminated fuel. It protects expensive fuel‑system assemblies from early‑stage wear. Remember to replace this fuel‑water separator filter during scheduled boat maintenance work. Moreover, strictly follow factory service manual during fitting, in order to keep your Yamaha outboard running reliably on open water
Replace Parts Number:
90794-46871-00
90794-46913-00
90794-46911-00
90794-46868-00
Compatible with:
Yamaha Outboard Motor Up To 300HP Fuel Water Filter Separator
