Placement on Vehicle : Rear
Special Features : Control
Model: ND96360
Working Communication: Hall Sensor
Available Rated Battery Voltage: 48V-96V
Battery Voltage: 115V
Available Motor Power: 3000W - 5000W
Defaut Throttle Working Voltage: 0V - 5V
DC Current: 170A
Phase Current: 360A
Weight: 2.2kgs
Instaliing Size: 189mm * 121mm * 65mm
Controller Design: BLDC
Case Material: Aluminum
Support Programmable: PC & Phone
Suitable for electric bike scooter motorcycle, tricycle, kart, ATV
Item Weight : 2.5kg
Item Height : 65mm
Item Width : 121mm
Item Length : 189mm

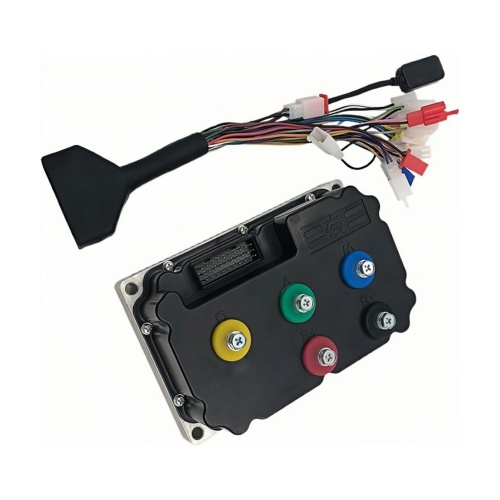

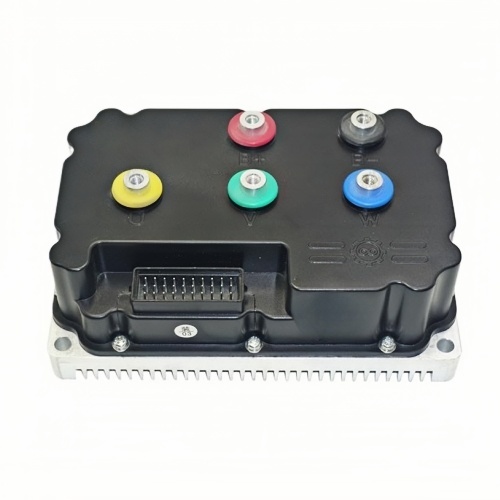

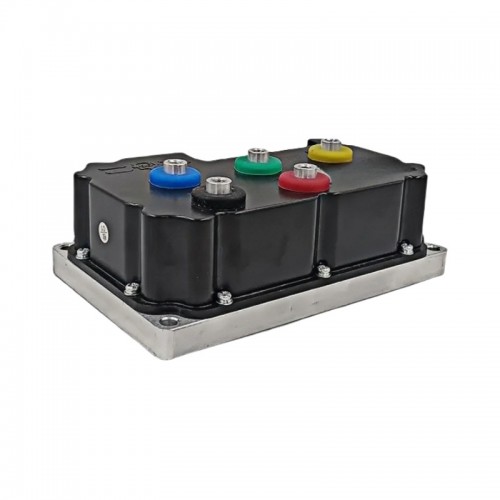

High Power Electric Motorcycle Controller 72V/84V/96V 360A 3000-4000W BLDC Programmable Fardriver ND96360/ND72360
About this item
- ND72680/ND84680/ ND96680 are sine wave controller with waterproofing grade IP67, suit for 4-6kw motors.
- All the raw materials are imported, using high-performance Moss tube.
- With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board.
- Small in size High efficiency, low temperature rise, small running current.
- With self-learning function, excellent commonality.
