Home / Sell/ Fardriver / 72V 4-6KW High Power Electric Motorcycle Controller Bldc Motor Controller 350A Max DC Current Programmable Fardriver ND72680 /

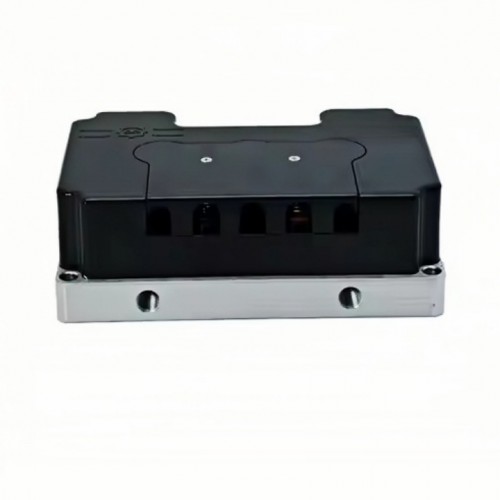

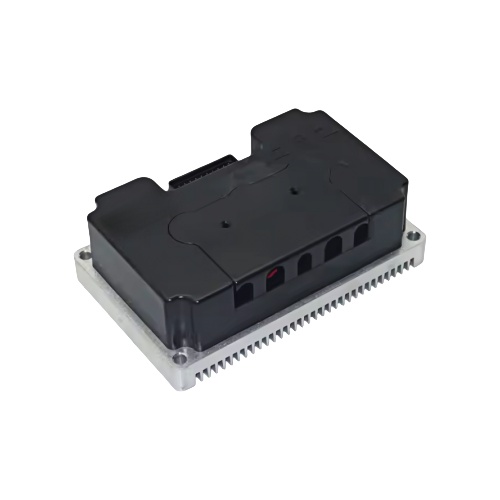

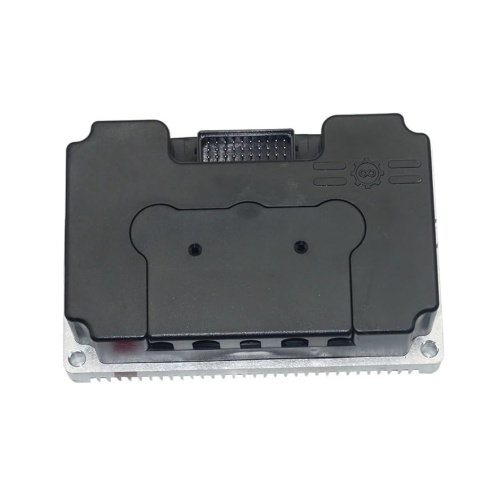

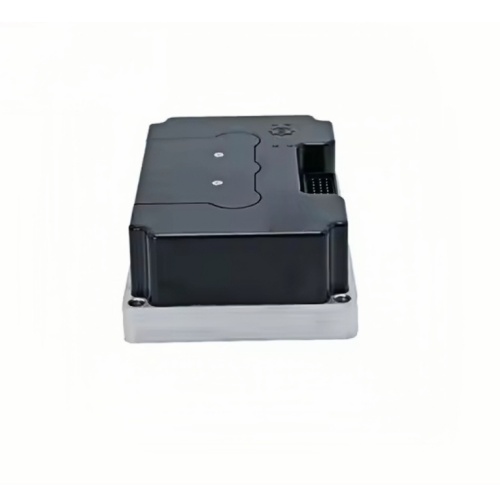

72V 4-6KW High Power Electric Motorcycle Controller Bldc Motor Controller 350A Max DC Current Programmable Fardriver ND72680

US$ 190.56 / 1 Piece
1Piece Minimum order
About this item
  • The ND72680 is a sine wave controller, waterproof to IP67 for 4-6kw motors
  • For ND72680, the peak voltage is 88V
  • This is the Hall version (by default) and is suitable for Hall motors
  • High efficiency, low temperature rise, low running current, self-learning function, excellent versatility
  • The far drive controller is a sine wave type controller, which is a brushless DC controller with self-learning function. Usually, it matches well with QS motors, if you want to match with new brand motors, you should test some parameters by yourself
Jinhua Yisong Trading Co., Ltd
1 1 years China
Avg Response Time: ≤24 h
Business Type: e-motorcycle
Chat

Products related to this item

Latest Products from this Supplier

Fuel Filter for Yamaha F175LA 0114 F175LA 0115 F175LA 0116 F175XA 0114 F175XA 0115 F175XA 0116
Fuel Filter for Yamaha F225NCA 0114 F225NCA 0115 F225NCA 0116 F225XA 0113 F225XA 0114 F225XA 0115
Fuel Filter for Yamaha F150TLR_0411 F150TXR_0411 F150XA 0113 F150XA 0114 F150XA_0112 F150XB 0115 F150XB 0116
Fuel Filter for Yamaha 150 175 200 225 250 300 350 HP Outboard Engine 6P3WS24A
Fuel Filter Fit for Yamaha 2 Stroke / 4 Stroke Outboard Motor 150HP 175HP 200HP 225HP 250HP 300HP 350HP 2006 - on
Fuel Filter for Yamaha 6P3-WS24A-01 6P3-24563-01 Sierra 18-79809
Fuel Filter for Yamaha F150AET1X 0410 F150TJR 0409 F150TJR 0410 F150TJR_0411 F150TLR 0406
Fuel Filter for Yamaha 6P3-WS24A-00-00 F150JA_0112 F150LA_0112 F150XA_0112 LF150XA_0112
Fuel Filter for 150-250 HP Outboard Motors TJ-C-120 Motor Boat 6P3-WS24A-01-00
Fuel Filter for Yamaha F150TLR 0407 F150TLR 0408 F150TLR 0409 F150TLR 0410 F150TLR_0411
Oil Filter for Yamaha Outboard 2016-2018 Can Am Defender HD8 HD10 420256188
Oil Filter for Yamaha Outboard 420256188, 711256188, KN152, HF152 Outlander

Model: ND72680
Placement on Vehicle : rear
Special Features : controller
Working Communication: Hall Sensor

Battery Voltage: 88V
Available Rated Battery Voltage: 48V-72V
Defaut Throttle Working Voltage: 0V - 5V
Available Motor Power: 3000W - 6000W
max DC current : 350A
Protect phase current : 680A
Rated voltage : 72V 84V 96V
Waterproof : IP67
Mosfets Detail: 30 FET
Case Material: Aluminum
Item Height : 60mm
Item Width : 118mm
Item Length : 180mm
Weight: 2.4kgs
Controller Design: BLDC
Case Material: Aluminum
Support Programmable: PC & Phone
Suitable for electric bike scooter motorcycle, tricycle, kart, ATV


1pc X ND72680 Encoder version motor controller

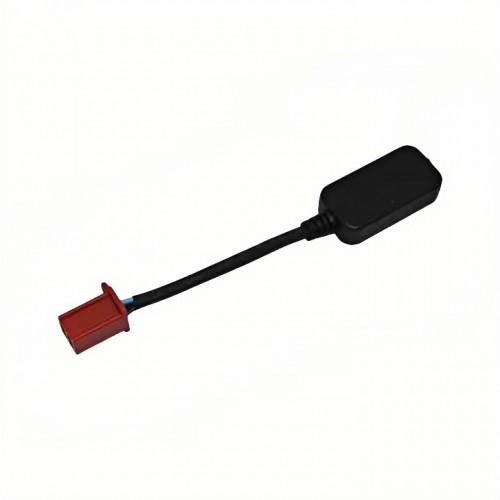

1pc X Bluetooth Module
