Motor Diameter 200mm
Rated Voltage 36V
Rated Power: 250W
Rated Speed: 500±30 rpm
Rated Current: 5±0.5 A
Theoretical Torque: 10.9 N/m
Phase Angle: 120°
Pole Number: 15 Pairs of Poles: 30
Magnet Dimensions: 38M; 30mm × 11.2mm × 3mm
Enameled wire specification Enameled round copper wire QZ-C180
Coil winding 0.51#512
Stator core dimensions 105# 3.5
Number of slots 27
Lead wire specification 3×1.5²-5×0.1²
Exposed lead wire length 300mm
No-load current ≤0.3A
Withstand voltage 0.5 kV ≤10 mA
Insulation resistance ≥500 MΩ
Shaft material 45 steel
Shaft type Single-sided shaft
D-shaped clamp type
Waterproof rating IP54
Maximum load 80 kg
Environmental requirements -20°C to 65°C

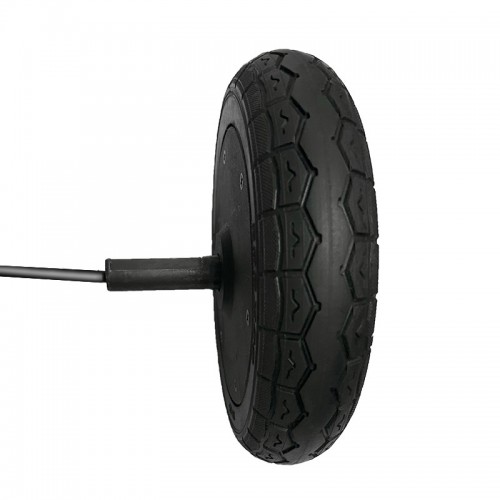

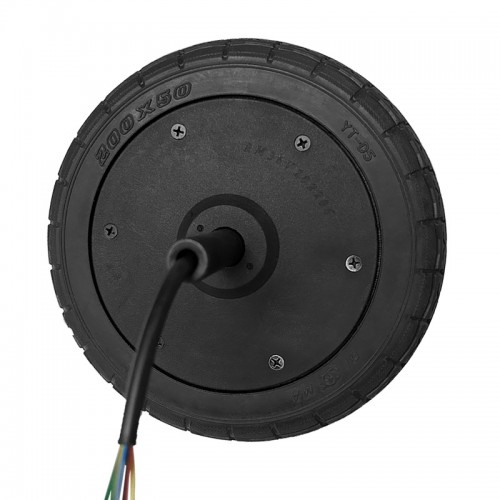

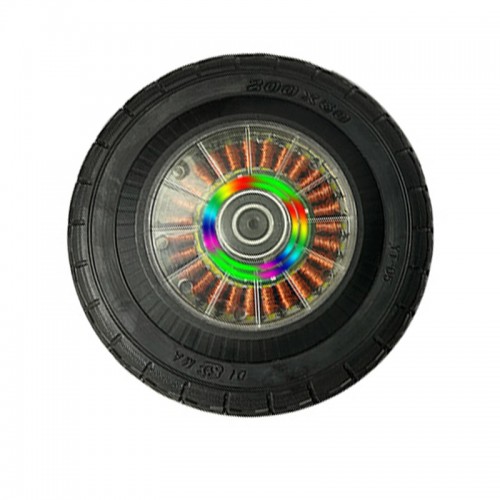

8-inch 36V Two-Wheel Electric Balance Scooter DC Brushless Hub Motor 250W
US$ 42.50 / 1 Piece
1Piece Minimum order
About this item
- Operating Voltage: 36V Rated Power: 250W
- Type: Hub Motor
- High Efficiency, Durable
- Suitable for Electric Vehicles
- One-Year Warranty
