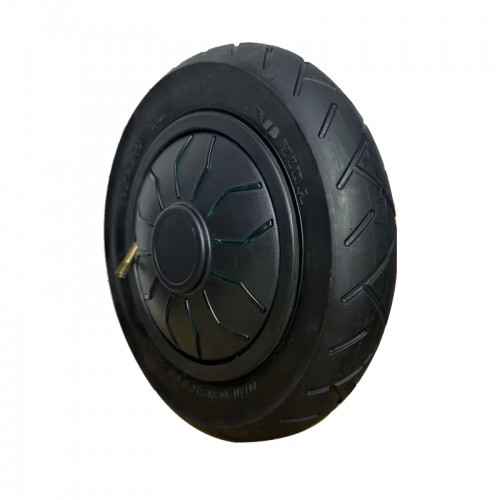

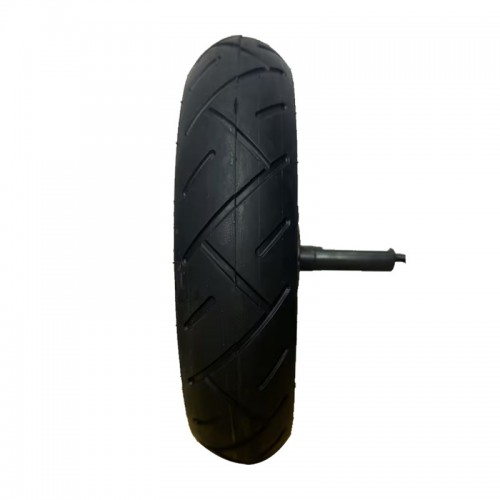

10-inch diameter, 255mm tire width, 54mm single-sided hub motor

- **Rated voltage**: 36V
- **Rated power**: 350W
- **Rated speed**: 500±30 rpm
- **Rated current**: 8±0.5 A
- **Theoretical torque**: 15.9 N/m
- **Phase angle**: 120°
- **Pole pairs**: 15 pairs
- **Magnet dimensions**: 38M; 30mm × 11.2mm × 3mm
- **Enameled wire specification**: Enameled round copper wire
- **Coil winding**: 0.51# × 5 × 12
- **Stator core dimensions**: 105#
- **Number of slots**: 27
- **Lead wire specifications**: 3×1.5²-5×0.1²
- **Exposed lead wire length**: 300mm
- **No-load current**: ≤0.3A
- **Withstand voltage**: 0.5KV ≤10mA
- **Insulation resistance**: ≥500MΩ
- **Shaft material**: 45 steel
- **Shaft type**: Single-sided shaft; D-shaped clamp type
- **Waterproof rating**: IP54
- **Maximum load**: 120kg
- **Environmental requirements**: -20℃~65℃
