SPECIFICATION
1. Rated voltage:AC 12V
2. Rated frequency:50/60Hz
3.Power consumption:≤3W
4. Inp current:200mA
5.Torque:≥1.3kgf.cm
6. Speed:5/6 r/min
7. Starting voltage:≤10.5V
8.Insultion resistance:≥100MΩ
9.Dielectric strength:600V/1S
10. Noise:<45dB
11.Coil temperature rise:≤65K(12v/50Hz)
12.Diversion:CW/CCW
13.Insulation class:A

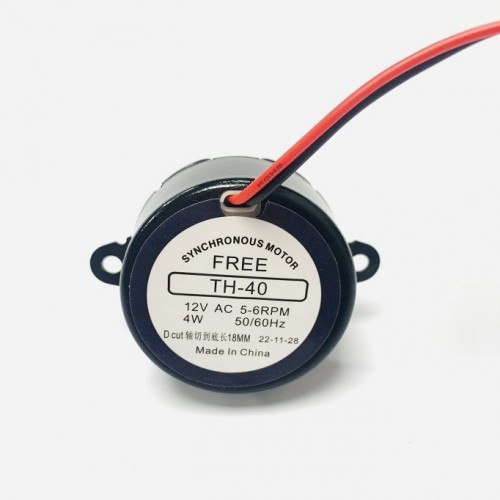

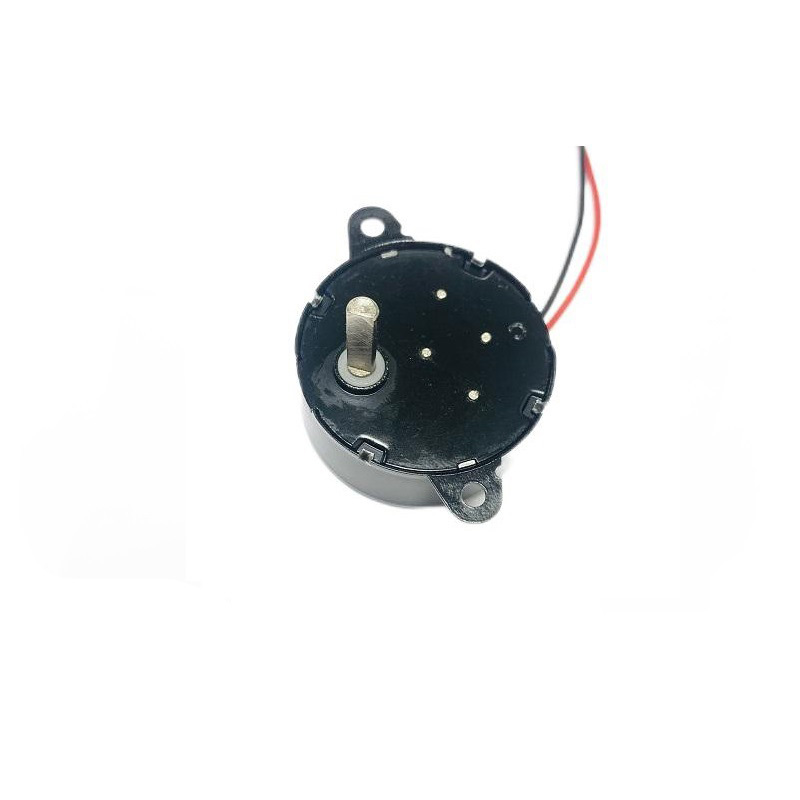

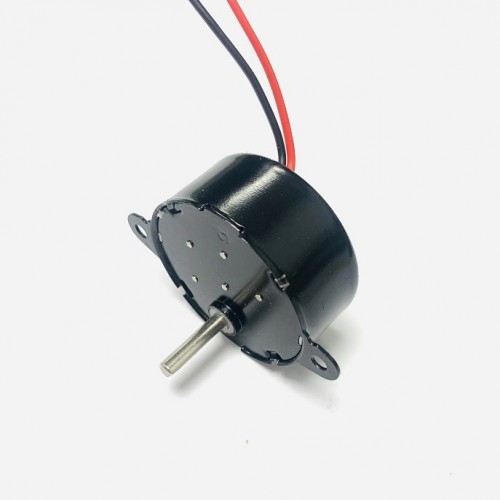

40KTYZ Micro AC Synchronous Motor for Advertising Stage Spotlight
US$ 1.00 / 1 Piece
1Piece Minimum order
Voltage:
12V
Speed:
5-6 RPM
Frequency:
50/60Hz
About this item
- Durable construction,designed for quick and easy installation
- The shell and cover plate are stretched and formed，gear set is a combination of copper and steel teeth
- Low noise, spring return, long operating life
- Rated Voitage: 12V,Power:4w,Direction of Rotation:CCW ,Speed:5-6 rpm
- Long-term locking, motor is not prone to burning out
