Input unit: Single-phase
Basic accuracy: Class 0.5, ±(0.4% of reading + 0.1% of full scale)
Measurement bandwidth: 45 Hz–65 Hz
Input range: Voltage: 5–600 V
Current: 5 mA–20 A (expandable with current transformers)
Measurement Parameters: Voltage U, Current I, Frequency f, Active Power P, Power Factor PF
Allowed Overload: 120% of voltage and current range
Sampling Rate: 8,000 times/second (24-bit simultaneous sampling of voltage and current)
Display Type: Four-window LED display
Expansion Interfaces: Standard Interfaces: RS232/485
Operating Power Supply: AC 100V–265V, 50/60Hz
Dimensions: Width × Height × Depth 223.5 × 107.5 × 380
Cutout Dimensions: Width × Height 209 × 84

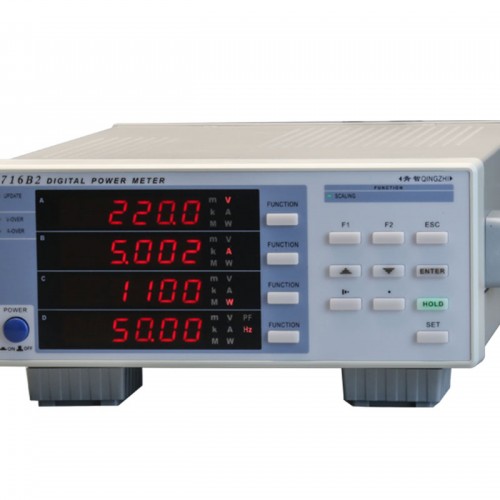

8716B2 Single-phase power meter
US$ 8000.00 / 1 Piece
1Piece Minimum order
Brand:
QINGZHI
About this item
- The design of the 8716B2 incorporates an advanced 32-bit high-speed processor and dual 24-bit AD converters, offering high precision, wide dynamic range, and a compact, versatile structure. It is a new generation of digital electrical parameter measurement instruments capable of measuring RMS voltage, current, active power, power factor, and frequency.
