When current flows through the internal coils, it generates magnetic flux lines, forming a magnetic circuit that produces torque. By adjusting the excitation current, the load torque can be varied.
Applications:
Medium-low torque, high-speed motor testing
Induction motors (asynchronous motors)
Low-power DC motors
Series-wound motors
Electric tool industry
HZC-Q Type Compressed Air-Cooled Hysteresis Dynamometer
US$ 6000.00 / 1 Piece
1Piece Minimum order
Brand:
LANLING
About this item

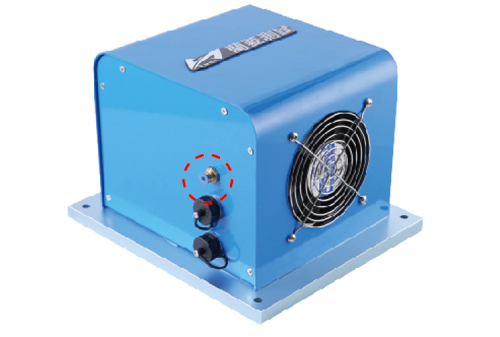

- All models in the HZC-Q series have identical external dimensions to their corresponding HZC series counterparts. The only difference is the addition of a compressed air input port (as indicated by the red dashed line in the figure above).
- Magnetic Powder Dynamometer The magnetic powder dynamometer consists of: Stator Solid rotor Excitation coil Magnetic powder medium Support frame Base plate
- When current flows through the internal coils, it generates a magnetic field, causing the magnetic powder to align along the magnetic flux lines, forming magnetic chains. These chains produce drag force, which resists rotor rotation—this force is the load torque.
- By adjusting the excitation current, the load torque can be varied. Applications: High-torque, low-speed scenarios Starter motors (constant-torque loaded starts) Induction motors (asynchronous motors) DC gear motors Industries such as papermaking, textiles, etc.
- Hysteresis Dynamometer The hysteresis dynamometer consists of: Toothed-pole stator Hollow hysteresis cup rotor Excitation coil Support frame Base plate
