1 years
China
Compatible With/Replacement For:

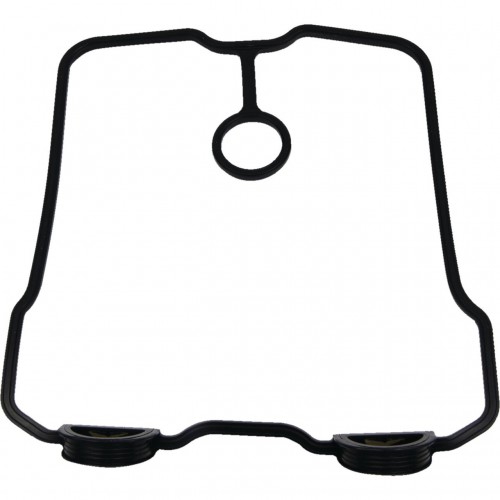

Arctic Cat 700 LTD 2006-2007 700 Valve Cover Gasket, 700 EFI 2007-2008 700 Valve Cover Gasket, 700 TRV 2008-2012 700 Valve Cover Gasket
OEM Reference Part Number: Direct replacement for Arctic Cat factory part number 819166, with precision-matched bolt holes and seal contours to match original equipment fit Gasket Construction Material: Manufactured from high-temperature nitrile rubber (NBR) bonded to a rigid steel core to resist compression set, cracking, and seal blowout Operating Temperature Rating: Rated to withstand continuous operating temperatures from -40°F (-40°C) to 300°F (149°C) without hardening or losing seal integrity Recommended Mounting Torque: Torque valve cover fasteners to 7-9 ft-lbs (9.5-12.2 Nm) in a crisscross tightening pattern to ensure even pressure across the entire gasket surface Fluid Compatibility: Resists degradation from 4-stroke engine oil, gasoline, ethylene glycol coolant, and common powersports engine additives to extend service life Gasket Thickness: 0.125 inch (3.18mm) uniform cross-section, die-cut to exact OEM dimensions with no trimming or modification required for installation Compatible Engine Type: Engineered for 695cc liquid-cooled single-cylinder 4-stroke engines found in all listed compatible Arctic Cat 700 series ATV models Product Net Weight: 0.18 lbs (82 grams), lightweight precision fit that adds no unnecessary bulk to the engine top end assembly Warranty Coverage: 1-year limited warranty covering manufacturing defects, material flaws, and premature seal failure when installed per factory service guidelines Installation Notes: No additional RTV sealant or gasket cement is required for installation when cylinder head and valve cover mating surfaces are fully cleaned of old residue and oil
