Voltage
12V
Rated Current
40A
Coil Voltage
12VDC 24VDC
Coil Power
1.8W
Contact Rating
14VDC/40A
Maximum Operating Current
30A
Maximum Operating Voltage
14VDC
Rated Load (Resistive Load)
1A: 30A 14VDC
1C: None/Digital Control 30A/20A 14VDC
Insulation Resistance
100MΩ
Dielectric Strength (Coil and Contacts)
500V AC/m
Ambient Temperature
-40 °C to +85 °C
Operate/Release Time
10ms/10ms

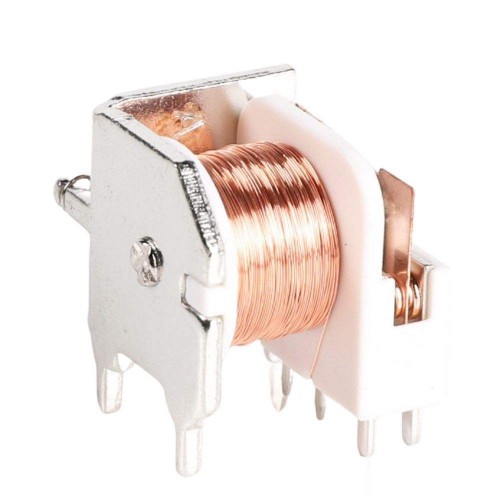

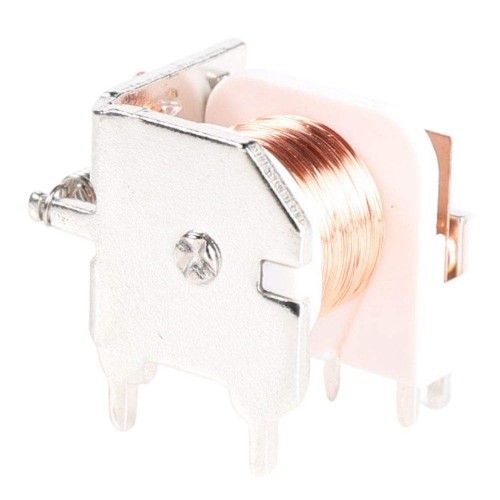

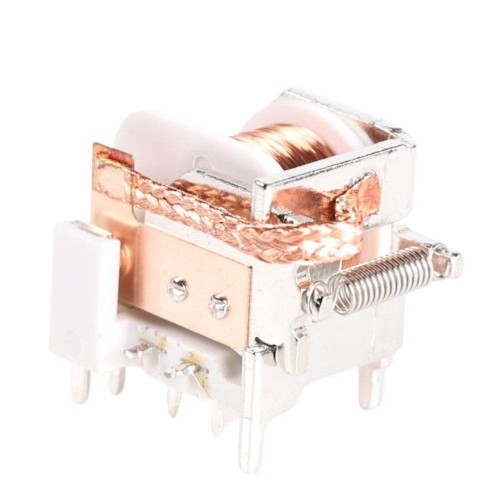

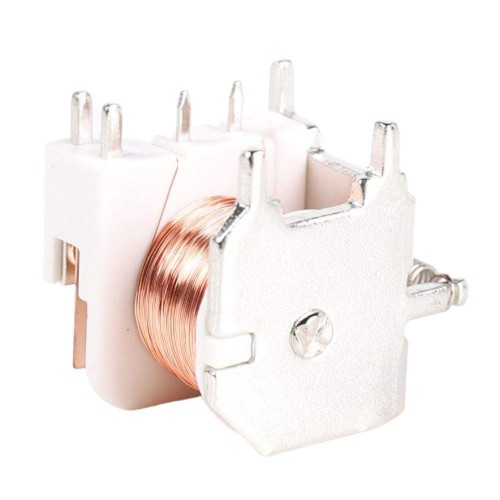

6-Pin 7-Pin Circuit Board Automotive Relay 12V/24V-40A
US$ 7.99 / 1 Piece
1Piece Minimum order
About this item
- Specifications: 12V/24V-40A
- Type: Automotive Relay
- High efficiency, exceptional adaptability, durable
- Suitable for automotive applications
- One-year warranty
