Voltage
12V
Rated Current
40A
Contact Rating
30A 14VDC
Coil Pickup Voltage (VDC)
8V/16V
Coil Release Voltage (VDC)
1.2V/2.4V
Maximum Operating Current
40A
Maximum Operating Voltage
27VDC
Rated Load (Resistive Load)
1A: 40A 13.5VDC 20A 27VDC
1C: MO/NC 40A/30A 13.5VDC 20A/15A 27VDC
Insulation Resistance
100MΩ
Dielectric Strength (Coil and Contacts)
500V AC/m
Ambient Temperature
-40 °C to +85 °C
Operating/Release Time
10ms/10ms

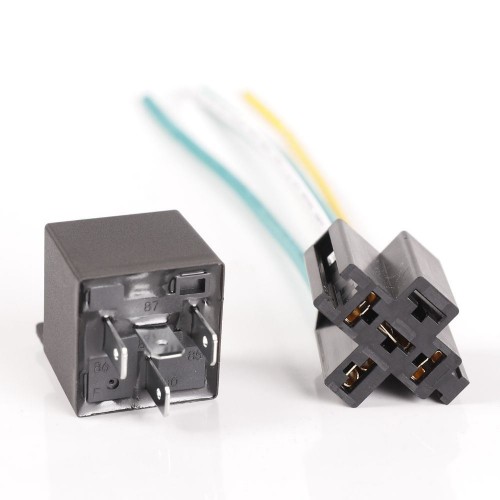

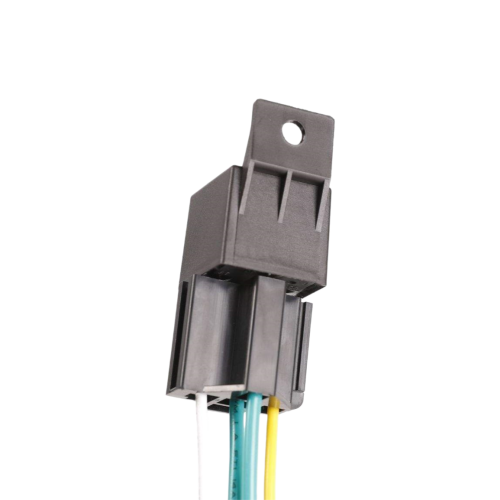

12V 40A Automotive Relay Remote Disconnect for Positioning Systems
US$ 7.99 / 1 Piece
1Piece Minimum order
About this item
- Specifications: 12V 40A
- Type: Automotive Relay
- High efficiency, exceptional adaptability, durable
- Suitable for automotive applications
- One-year warranty
