Product Description
The 14SYSE series servo motor has the advantage of high control accuracy, good reliability, and so on. It is widely used in the field of automation. Designed to be thin and light, but it still can provide sufficient power and is a great choice for applications such as automated testing equipment, medium and large-sized robot systems, medical equipment, and industrial automation. Furthermore, the motor is designed to be reliable and durable so that it can be operated repeatedly for a long period of time, and to stably use at high intensity for a long time, the need for maintenance is minimized.
BAOLONG automation servo motors can be used in a wide range of automation applications. They provide tight control, high torque and quick dynamic response, ideal for robotic arms, industrial automation and motion control systems.
Spindle servo motor is designed for driving the spindles in provided machine-tools including lathes, milling machines and CNC routers. They offer high-speed rotation and accurate control permission to the rotational movement of a spindle.
The optimal servo motors can be selected based on the particular application and required performance specifications. There are many things to take into consideration, such as torque, speed range, accuracy, response time, and reliability. The ideal servo motors are those that combine these features and optimize them depending on the required application.
Electrical Specifications
| Motor Model | 14SYNE483730 | 14SYNE485630 | 14SYNE487430 |
| Number of Phase | 3 | ||
| Number of Poles | 8 | ||
| Rated Voltage (VDC) | 48 | ||
| Rated Speed (Rpm) | 3000 | ||
| Rated Torque (N.m) | 0.12 | 0.18 | 0.24 |
| Rated Power (W) | 37 | 56 | 74 |
| Rated Current (A) | 1.2 | 1.8 | 2.4 |
| Peak Current (A) | 3.6 | 5.4 | 7.2 |
| Peak Torque (N.M) | 0.36 | 0.54 | 0.72 |
| Rotor Inertia (kg.cm2) | 0.025 | 0.03 | 0.035 |
| Torque Constant (N.m/A) | 0.26 | 0.26 | 0.26 |
| Torque Constant (V/krpm) | 4.2 | 4.2 | 4.2 |
| Line-Line Resistance (Ω) | 3.3 | 2.8 | 2.2 |
| Line-Line Inductance (mH) | 3.0 | 2.5 | 2.0 |
| Length (mm) | 59 | 69 | 79 |
| Weight (kg) | 0.35 | 0.45 | 0.55 |
| Encoder Resolution (P/R) | 1000, 1024, 2500, 4096, 17bit | ||
Wiring Diagram

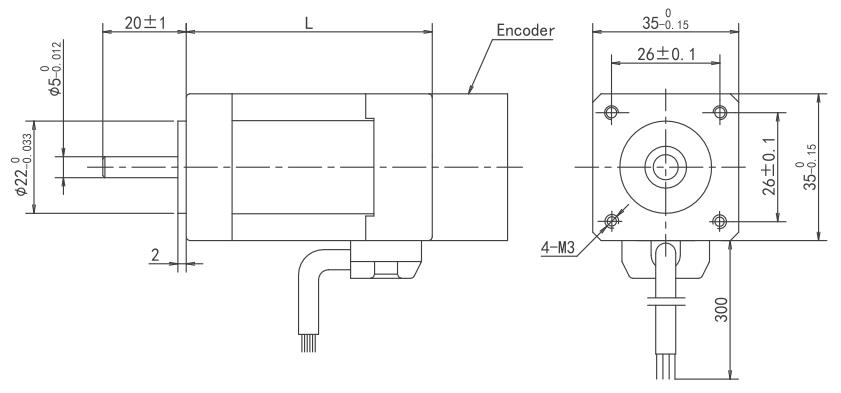

Dimensions(Unit: mm)
