Product Description
The design of the 17SYSE series servo motor focuses on providing stable and powerful torque and power output, making it an ideal choice for high-precision automation equipment, professional robot systems, and other industrial applications that require precise motion control. In addition, the size and power range of the motor make it very suitable for working in environments with high physical loads and limited space, such as automated packaging machinery, CNC machine tools, and high-end assembly and testing equipment. High standard manufacturing ensures the durability and reliability of the motor under high-intensity usage conditions.
Baolong supply Power servo motors are servo motors designed to handle high-power applications. These motors are built to deliver significant torque and handle heavy loads.a 100 watt servo motor refers to a servo motor with a power rating of 100 watts. This power rating indicates the motor's capacity to deliver mechanical output power. A 100 watt servo motor can be used in a variety of applications where moderate power and precise control are required.
Waterproof servo motor, as the name suggests, are servo motors that are designed to be resistant to water and other environmental elements. These motors are typically enclosed in a housing that provides protection against moisture, splashes, and dust.
Electrical Specifications
| Motor Model | 17SYTT485030 | 17SYTT481030 |
| Number of Phase | 3 | |
| Number of Poles | 10 | |
| Rated Voltage (VDC) | 48 | |
| Rated Speed (Rpm) | 3000 | |
| Rated Torque (N.m) | 0.16 | 0.32 |
| Rated Power (W) | 50 | 100 |
| Rated Current (A) | 1.6 | 3.2 |
| Peak Current (A) | 4.8 | 9.6 |
| Peak Torque (N.M) | 0.48 | 0.96 |
| Rotor Inertia (kg.cm2) | 0.025 | 0.035 |
| Torque Constant (N.m/A) | 0.12 | 0.12 |
| Torque Constant (V/krpm) | 7.1 | 7.1 |
| Line-Line Resistance (Ω) | 3.5 | 2.1 |
| Line-Line Inductance (mH) | 3.0 | 2.0 |
| Length (mm) | 55 | 75 |
| Weight (kg) | 0.45 | 0.6 |
| Encoder Resolution (P/R) | 1000, 1024, 2500/17bit | |
Wiring Diagram

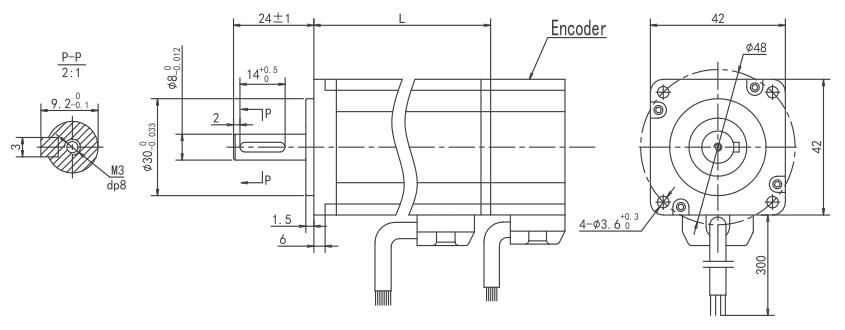

Dimensions(Unit: mm)
