Product Description
The high torque output and extended power range of the 24SSTE series servo motor make it an ideal choice for high-end industrial applications, such as large automation devices, heavy-duty material handling systems, and high-precision machining centers. Its design focuses particularly on stability and efficiency during high load operations, ensuring reliability and durability in harsh working environments. In addition, the engineering design of the motor also takes into account the need for easy maintenance and long-term stable operation, resulting in lower overall ownership costs on industrial production lines.
A 200W servo motor refers to a servo motor with a power rating of 200 watts. These motors are capable of delivering higher power and torque compared to lower-rated motors. 48V servo motor operates on a 48-volt power supply. These motors are designed to handle higher voltage levels, which can provide advantages in terms of power transmission, efficiency, and compatibility with certain power systems.
High precision servo motors are servo motors specifically engineered to offer exceptional accuracy and repeatability in positioning and motion control. These motors are designed with tight tolerances, advanced feedback systems, and enhanced control algorithms to achieve precise and reliable performance. High precision servo motors are commonly used in applications that require extremely accurate positioning, such as semiconductor manufacturing, optical systems, and scientific instrumentation.
Electrical Specifications
| Motor Model | 24SSTT482030 | 24SSTT484030 | 24SSTT2202030 | 24SSTT2204030 |
| Number of Phase | 3 | 3 | ||
| Number of Poles | 10 | 10 | ||
| Rated Voltage (VDC/VAC) | 48 | 220 | ||
| Rated Speed (Rpm) | 3000 | 3000 | ||
| Rated Torque (N.m) | 0.64 | 1.27 | 0.64 | 1.27 |
| Rated Power (W) | 200 | 400 | 200 | 400 |
| Rated Current (A) | 5.5 | 11 | 1.45 | 2.9 |
| Peak Current (A) | 16.5 | 33 | 4.35 | 8.7 |
| Peak Torque (N.m) | 1.92 | 3.81 | 1.92 | 3.81 |
| Rotor Inertia (kg.cm2) | 0.25 | 0.45 | 0.25 | 0.45 |
| Torque Constant (N.m/A) | 0.11 | 0.11 | 0.44 | 0.44 |
| Torque Constant (V/krpm) | 10.5 | 10.5 | 29 | 29 |
| Line-Line Resistance (Ω) | 0.2 | 0.4 | 10 | 2.2 |
| Line-Line Inductance (mH) | 0.4 | 0.6 | 11 | 5.5 |
| Length (mm) | 69 | 82 | 69 | 82 |
| Weight (kg) | 0.6 | 1.0 | 0.6 | 1.0 |
| Encoder Resolution (P/R) | 1000, 1024, 2500/17bit, 23bit | |||
*Note: We can manufacture products according to customer's requirements.
Wiring Diagram

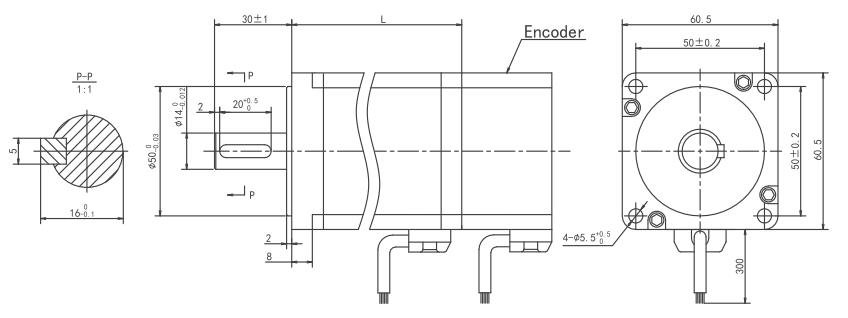

Dimensions(Unit: mm)
