geared servo motor Product Description
The 56SSEH series multipole torque servo motor is an efficient power unit designed for precise control and high-performance output. Its unique multipole design enhances the torque density and response speed of the motor, providing excellent performance in a compact size. This motor is perfect for use in automation technology, precision machinery, and any modern application that requires precise torque control. Its multipole structure not only improves power efficiency, but also optimizes the thermal management of the motor, ensuring reliability and stability during long-term operation.
servo motor manufacturer offer 48v dc servo motor rating ensures compatibility with the power source and control system.A geared servo motor is a servo motor that incorporates a gearbox or gear mechanism. The gearbox is attached to the motor shaft and provides a mechanical advantage by reducing the output speed and increasing the torque. Geared servo motors are used in applications that require high torque and lower speed, allowing for increased power and control in various industrial and automation systems.
Electrical Specifications
| Motor Model | 56SSEH489030 |
| Number of Phase | 3 |
| Number of Poles | 16 |
| Rated Voltage(VDC) | 48 |
| Rated Speed(Rpm) | 3000 |
| Rated Torque(N.m) | 0.3 |
| Rated Power(W) | 95 |
| Rated Current(A) | 2.9 |
| Peak Current(A) | 8.7 |
| Peak Torque(N.M) | 0.9 |
| Rotor Inertia(kg.cm2) | 0.15 |
| Torque Constant(N.m/A) | 0.1 |
| Torque Constant(V/krpm) | 9.5 |
| Line-Line Resistance(Ω) | 1.5 |
| Line-Line Inductance(mH) | 2.1 |
| Length(mm) | 16 |
| Weight(kg) | 0.5 |
Wiring Diagram

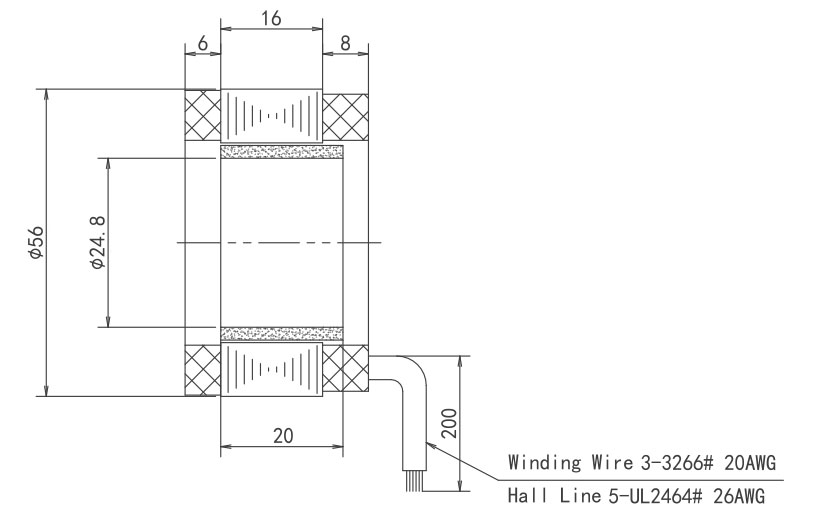

Dimensions (Unit: mm)
