60SSEH series motors Product Description
The 60SSEH series motors are designed with a focus on achieving optimal balance between performance and size, making them an ideal choice for complex systems that require precise control and high torque output. Its multipole design not only improves the response speed and control accuracy of the motor, but also optimizes the energy efficiency ratio and reduces operating costs. Whether in automated assembly, robotics technology, or precision instruments, this motor can provide excellent power solutions.
baolong offer servo motor with integrated drive is no need for separate enclosures or complex wiring connections between components.
integrated servo motor and drive not only saves valuable space but also reduces the chances of wiring errors and streamlines the installation process. Moreover, the integration enables faster communication and synchronization between the motor and drive, resulting in enhanced precision, efficiency, and motion control. Whether in industrial automation, medical equipment, or printing and packaging machinery, the integrated servo motor ,integrated servo drive system delivers reliable and accurate performance. Its compact size, improved functionality, and ease of use make it a sought-after solution for various applications, driving innovation and efficiency in diverse industries.
Electrical Specifications
| Motor Model | 60SSEH481530 |
| Number of Phase | 3 |
| Number of Poles | 16 |
| Rated Voltage(VDC) | 48 |
| Rated Speed(Rpm) | 3000 |
| Rated Torque(N.m) | 0.5 |
| Rated Power(W) | 157 |
| Rated Current(A) | 4.4 |
| Peak Current(A) | 13.2 |
| Peak Torque(N.M) | 1.5 |
| Rotor Inertia(kg.cm2) | 0.15 |
| Torque Constant(N.m/A) | 0.1 |
| Torque Constant(V/krpm) | 9.5 |
| Line-Line Resistance(Ω) | 1.0 |
| Line-Line Inductance(mH) | 1.8 |
| Length(mm) | 20 |
| Weight(kg) | 0.7 |
Wiring Diagram

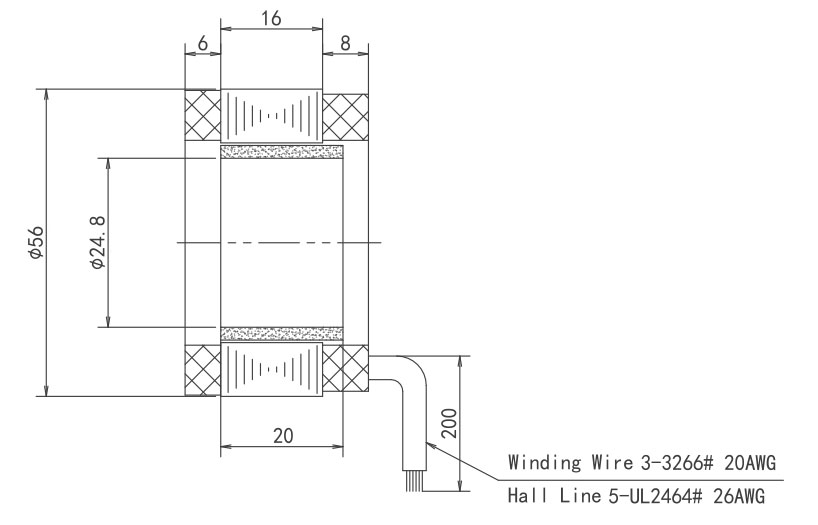

Dimensions(Unit: mm)
