Product Description
The 28RYSE low-voltage series servo motor is a well-designed circular servo motor, whose performance and size make it suitable for various precision control applications with moderate loads. Such as small automated machinery, precision instruments, and robotics technology. Its circular design and adjustable length give the motor a high degree of flexibility during installation and integration, making it easy to adapt to various design requirements. In addition, the power and torque output provided by this motor enables it to handle various dynamic and static loads, thereby maintaining stable and reliable operation under continuous operation and high performance requirements.
servo motor voltage,servo motor dimensions,torque of a servo motor are crucial factors when working with servo motors.
Consideration of servo motor voltage, servo motor dimensions, and torque is vital for selecting the right motor that aligns with your application's electrical requirements, physical constraints, and performance needs.
servo motor voltage: Servo motors require a specific voltage level, such as 12V, 24V, or 48V, to operate efficiently. It's essential to match the motor's voltage requirement with the power supply or control system to ensure proper functionality.
servo motor dimensions: Servo motors come in various sizes and shapes, with dimensions including length, width, height, and shaft diameter. Understanding the motor's dimensions is crucial for integration and compatibility within your application or system.
torque of a servo motor: The torque of a servo motor represents its rotational force or strength. It indicates the motor's ability to exert a twisting motion and is measured in units like ounce-inches (oz-in) or Newton-meters (Nm). Selecting a servo motor with appropriate torque ensures it can meet the requirements of your application, including load demands, acceleration, and speed requirements.
Electrical Specifications
| Motor Model | 28RYNE482530 | 28RYNE483830 | 28RYNE485030 |
| Number of Phase | 3 | ||
| Number of Poles | 8 | ||
| Rated Voltage (VDC) | 48 | ||
| Rated Speed (Rpm) | 3000 | ||
| Rated Torque (N.m) | 0.08 | 0.12 | 0.16 |
| Rated Power (W) | 25 | 38 | 50 |
| Rated Current (A) | 0.9 | 1.3 | 1.8 |
| Peak Current (A) | 2.7 | 3.9 | 5.4 |
| Peak Torque (N.M) | 0.24 | 0.36 | 0.48 |
| Rotor Inertia (kg.cm²) | 0.018 | 0.023 | 0.028 |
| Torque Constant (N.m/A) | 0.11 | 0.11 | 0.11 |
| Torque Constant (V/krpm) | 3.5 | 3.5 | 3.5 |
| Line-Line Resistance (Ω) | 3.3 | 2.8 | 2.3 |
| Line-Line Inductance (mH) | 2.3 | 1.8 | 1.3 |
| Length (mm) | 49 | 59 | 69 |
| Weight (kg) | 0.4 | 0.6 | 0.8 |
| Encoder Resolution (P/R) | 1000, 1024, 2500 | ||
Wiring Diagram

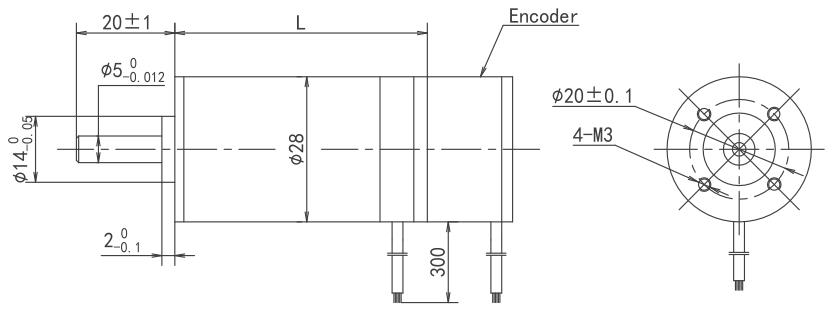

Dimensions(Unit: mm)
