Product Description
The 32RYNE series servo motor is suitable for various precision control automation applications, such as small robots, automated assembly equipment, precision mechanical equipment, and other technical fields that require reliable and precise power output. The design of the motor focuses on achieving high performance and reliability, suitable for long-term operation and high-precision requirements. Its circular design is also easy to integrate into existing systems, and can meet diverse installation needs without complex modifications.
Baolong Motor supply 24 volt servo motor,easy servo motor,servo motor ac and dc etc
24 volt servo motor Refers to a servo motor with an input voltage of 24 volts. This type of motor is usually used in small mechanical systems that require precise control of speed and position.
easy servo motor: It may refer to a servo motor that is simple to operate, easy to program and control, and is suitable for beginners or application scenarios that do not require complex control.
servo motor ac and dc: This may refer to a servo motor that can use either AC power or DC power. It has high flexibility and can adapt to different power environments.
Electrical Specifications
| Motor Model | 32RYNE242740 | 32RYNE244140 | 32RYNE245540 |
| Number of Phase | 3 | ||
| Number of Poles | 8 | ||
| Rated Voltage (VDC) | 24 | ||
| Rated Speed (Rpm) | 4000 | ||
| Rated Torque (N.m) | 0.066 | 0.1 | 0.133 |
| Rated Power (W) | 27.6 | 41.8 | 55.7 |
| Rated Current (A) | 1.65 | 2.5 | 3.3 |
| Peak Current (A) | 4.95 | 7.5 | 9.9 |
| Peak Torque (N.M) | 0.198 | 0.3 | 0.399 |
| Rotor Inertia (kg.cm2) | 0.015 | 0.02 | 0.025 |
| Torque Constant (N.m/A) | 0.05 | 0.05 | 0.05 |
| Torque Constant (V/krpm) | 4.6 | 4.6 | 4.6 |
| Line-Line Resistance (Ω) | 1.2 | 1.1 | 1.0 |
| Line-Line Inductance (mH) | 0.9 | 0.8 | 0.7 |
| Length (mm) | 49 | 59 | 69 |
| Weight (kg) | 0.4 | 0.6 | 0.8 |
| Encoder Resolution (P/R) | 1000, 1024, 2500 | ||
Wiring Diagram

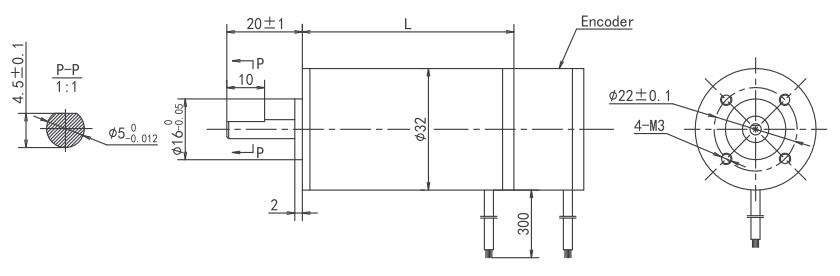

Dimensions(Unit: mm)
