Product Description
The 36RYSE low-voltage series servo motors demonstrate a high degree of applicability and technological precision, designed specifically for applications that require high power and precision. Considering the need to provide maximum power output in compact spaces, it makes it an ideal choice for small automation projects, precision devices, and customized robot applications. The circular structure and performance parameters of this motor make it not only easy to install, but also provide continuous and reliable power output, meeting the demanding technical requirements of industrial applications.
When choosing a motor, you need to consider servo motor watt,servo motor sizing,servo motor speed control,when selecting and implementing a servo motor system for a specific application.
Servo Motor Sizing: Sizing a servo motor involves determining the appropriate motor size based on the required torque, speed, and power output for the task at hand. This process takes into account the inertia of the load, the dynamics of the motion system, and the desired acceleration and deceleration rates. An undersized motor may not provide enough torque, while an oversized motor can be inefficient and more costly.
Servo Motor Watt:The wattage of a servo motor refers to its power consumption and is a measure of the work it can perform. Wattage is directly related to the motor's ability to generate torque and maintain operation under load. Higher wattage motors can handle more demanding tasks but may also generate more heat, requiring additional cooling mechanisms.
Speed control in servo motors is achieved through precise control of the motor's electrical input, which is managed by a servo drive or controller. This control allows for variable speed operation, enabling the motor to accelerate and decelerate smoothly and accurately. The speed can be adjusted in response to feedback from the system, ensuring that the motor operates at the optimal speed for the given task, which is essential for efficiency and precision in motion control applications.
Electrical Specifications
| Motor Model | 36RYSE243730 | 36RYSE245630 | 36RYSE247430 |
| Number of Phase | 3 | ||
| Number of Poles | 8 | ||
| Rated Voltage (VDC) | 24 | ||
| Rated Speed (Rpm) | 3000 | ||
| Rated Torque (N.m) | 0.12 | 0.18 | 0.24 |
| Rated Power (W) | 37 | 56 | 74 |
| Rated Current (A) | 2.3 | 3.5 | 4.6 |
| Peak Current (A) | 6.9 | 10.5 | 13.8 |
| Peak Torque (N.M) | 0.36 | 0.54 | 0.72 |
| Rotor Inertia (kg.cm2) | 0.025 | 0.035 | 0.045 |
| Torque Constant (N.m/A) | 0.05 | 0.05 | 0.05 |
| Torque Constant (V/krpm) | 4.6 | 4.6 | 4.6 |
| Line-Line Resistance (Ω) | 1 | 3 | 2.2 |
| Line-Line Inductance (mH) | 0.9 | 6 | 9 |
| Length (mm) | 54 | 64 | 74 |
| Weight (kg) | 0.3 | 0.5 | 0.7 |
| Encoder Resolution (P/R) | 1000, 1024, 2500/17bit | ||
Wiring Diagram

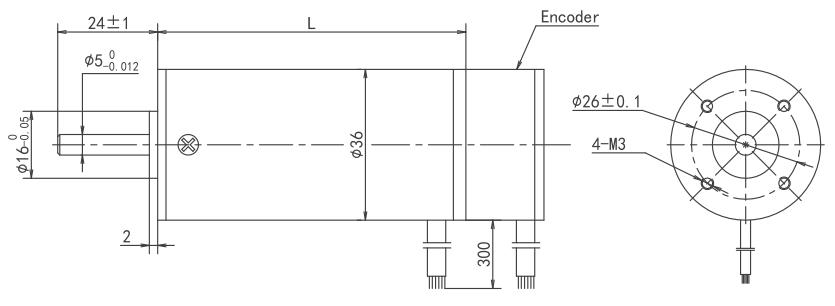

Dimensions(Unit: mm)
