Product Description
The design of 42SYTE low-voltage/AC series servo motors combines flexibility and high efficiency, suitable for diverse automation needs. Considering its versatility and reliability, it has become an ideal choice for industrial applications with changing demands, such as precision assembly lines, small robot technology, and high-performance testing and measurement equipment. The circular design of the motor not only optimizes the installation process, but also enhances its integration in complex systems, providing continuous and stable power output, meeting the high standard requirements of modern industry for servo motors.
The repetition of the keyword "servo motor" in the context of "servo motor s," "CNC servo motor," and "double shaft servo motor" highlights the diversity and specialization within the category of servo motors.
servo motor s is a type of actuator that combines a motor with a feedback system to create precise and controlled motion. It is widely used in various applications due to its high accuracy, reliability, and versatility.
CNC Servo Motor: A CNC (Computer Numerical Control) servo motor is designed for use in CNC machines, which are high-precision, automated manufacturing devices. These motors are crucial for the accurate movement of machine tools along various axes to cut, shape, or drill materials as programmed. The servo motors in CNC machines must be highly responsive and capable of high-speed operation with exact positioning to meet the demands of complex manufacturing tasks.
Double Shaft Servo Motor: This type of servo motor features two output shafts, offering the advantage of driving two mechanical systems simultaneously with a single motor unit. Double shaft servo motors can be used in applications where dual-axis control or additional mechanical outputs are required, such as in certain robotic arms or machinery that needs to operate two independent systems with synchronized motion.
Electrical Specifications
| Motor Model | 42SYTT485030 | 42SYTT481030 |
| Number of Phase | 3 | |
| Number of Poles | 10 | |
| Rated Voltage (VDC/VAC) | 48 | |
| Rated Speed (Rpm) | 3000 | |
| Rated Torque (N.m) | 0.16 | 0.32 |
| Rated Power (W) | 50 | 100 |
| Rated Current (A) | 1.6 | 3.2 |
| Peak Current (A) | 4.8 | 9.6 |
| Peak Torque (N.M) | 0.48 | 0.96 |
| Rotor Inertia (kg.cm2) | 0.025 | 0.035 |
| Torque Constant (N.m/A) | 0.12 | 0.12 |
| Torque Constant (V/krpm) | 7.1 | 7.1 |
| Line-Line Resistance (Ω) | 3.5 | 2.1 |
| Line-Line Inductance (mH) | 3.0 | 2.0 |
| Length (mm) | 52 | 72 |
| Weight (kg) | 0.7 | 0.93 |
| Encoder Resolution (P/R) | 1000, 1024, 2500/17bit | |
Wiring Diagram

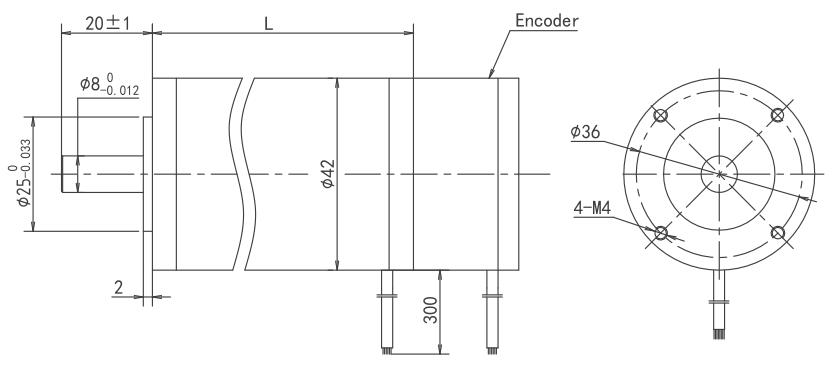

Dimensions(Unit: mm)
